Detailed introduction:

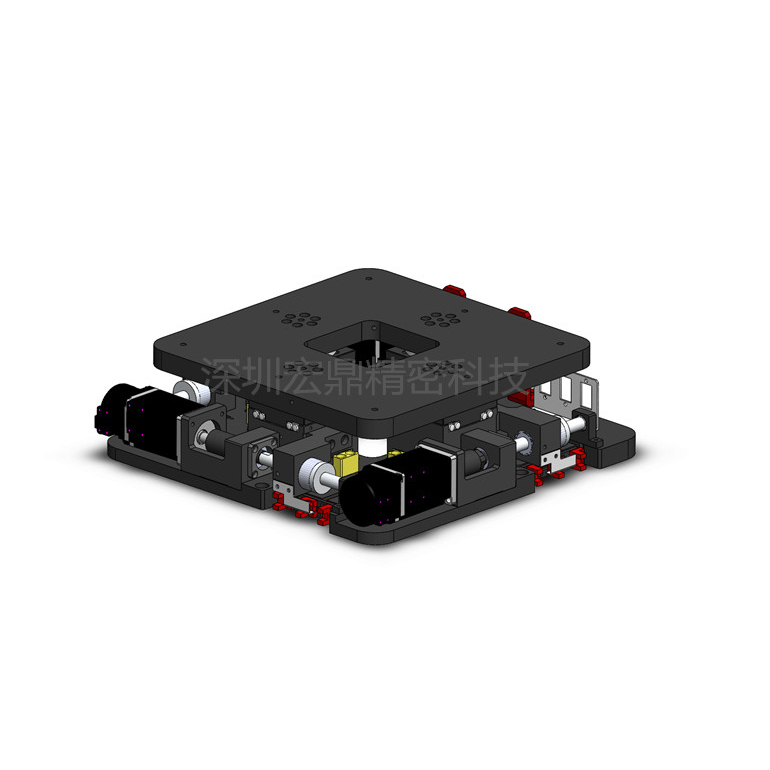

Precision alignment platform XXY-2503
● Ultra-thin, small size, high precision
● Hollow structure design, convenient for customers to apply structural space
● The UVW alignment platform is a precision component to prevent impact damage during application
● Add lubrication system to each motion track to improve the service life and accuracy of the alignment platform
● The material surface is hard-oxidized to effectively prevent deformation and greatly increase service life
● Carry out full inspection with laser interferometer to ensure the accuracy and quality of the slide before delivery

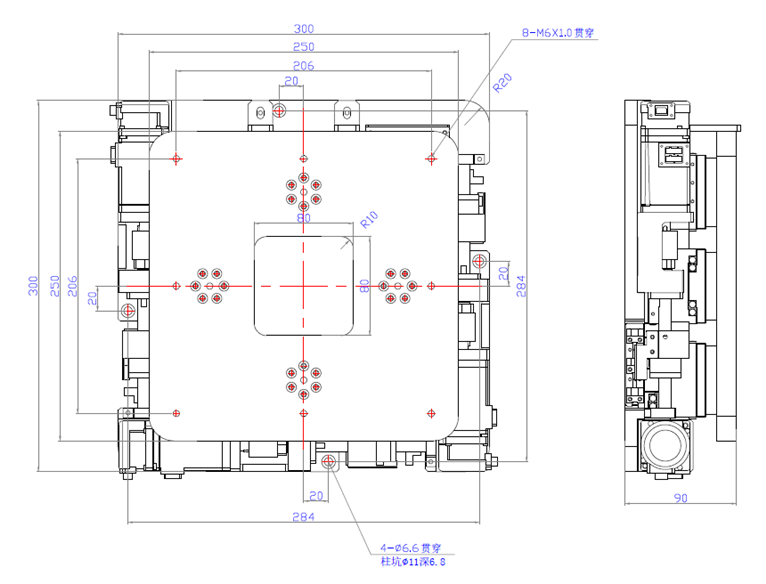

| Product size specifications | |
| Product size (mm) | Upper table 250*250 |
| Lower table 300*300 | |
| Height 90 | |
| Platform Level (UP) | P-level/ U-level |
| Repeat positioning accuracy (mm) | ±0.003/ ±0.0015 |
| Stroke (mm) | ±10 |
| Rotation angle ( ° ) | ±3° |
| Screw diameter (mm) | ∅10 |
| Screw lead (mm) | 4 |
| Linear Guides | VR2 |
| Flatness (mm) | ±0.025 |
| Horizontal load (KG) | 40 |
| Body material | Aluminum Alloy |
| Surface treatment | Cathodic Bright Black |
| Body weight (KG) | 8.5±2% |
| Motor Type | Two-phase stepper motor 42 frame |
| Drive Type | Two-phase stepper driver |
| Sensor Type | Panasonic/NPN |
