Detailed introduction:
Roll-to-roll screen printer CCD vision alignment system
● Closed-loop alignment, high precision, high speed, about 400MS
● Four-camera system, any combination of two cameras, suitable for roll-to-roll screen printers, simple operation, improved efficiency
● Visual motion card controls XY0 UVW alignment platform
● Visual alignment 0.005-0.01MM
● IO docking PLC, easy operation

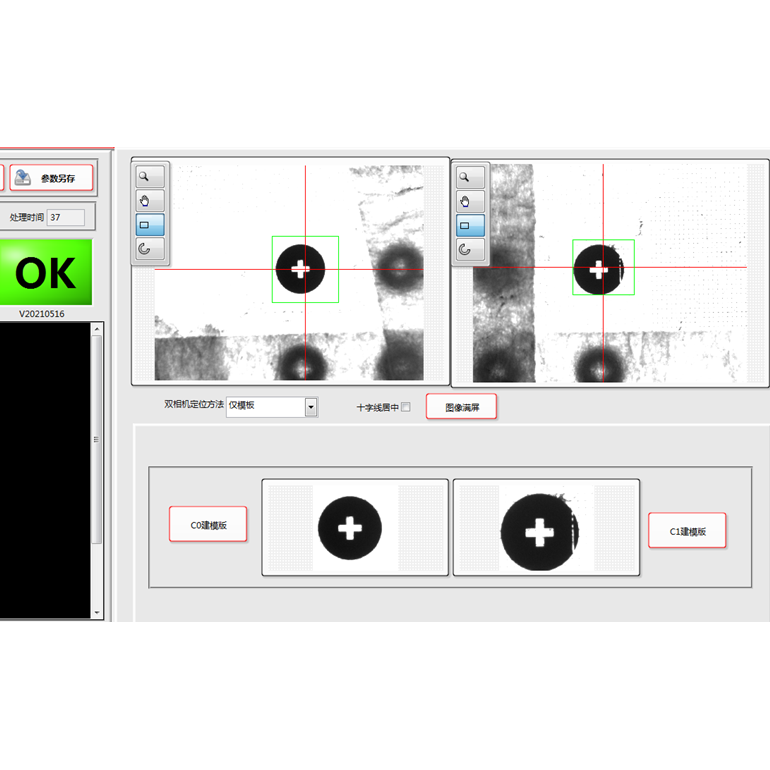

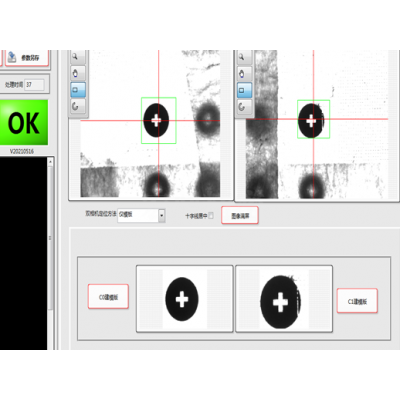

● Visual alignment soft system, the working principle is to use CCD camera, industrial lens and light source to take pictures of the characteristic position on the product, through image processing, collect image data for image processing, and perform position calculation to determine the actual position of the product, and calculate the actual offset value of the product by comparing it with the previously set reference position, and by controlling the movement of UVW, XXY alignment platform , the product moves to the previously set reference position, so as to achieve fast, closed-loop, high-precision alignment.
Application scenarios
★ Laser cutting machine
★ CCD screen printer
★ Exposure machine alignment
★ FPC binding
★ PCB substrate drilling
★ Automatic correction dispensing machine
★ OCA bonding water glue bonding machine
