CCD visual alignment system
● Closed-loop alignment, high precision, high speed, about 400MS
● Two cameras, four cameras, single camera optional
● Visual motion card controls XY0 UVW alignment platform
● Various alignment methods, center alignment, unilateral alignment, etc.
● Visual alignment 0.005-0.01MM
● IO docking PLC, easy operation

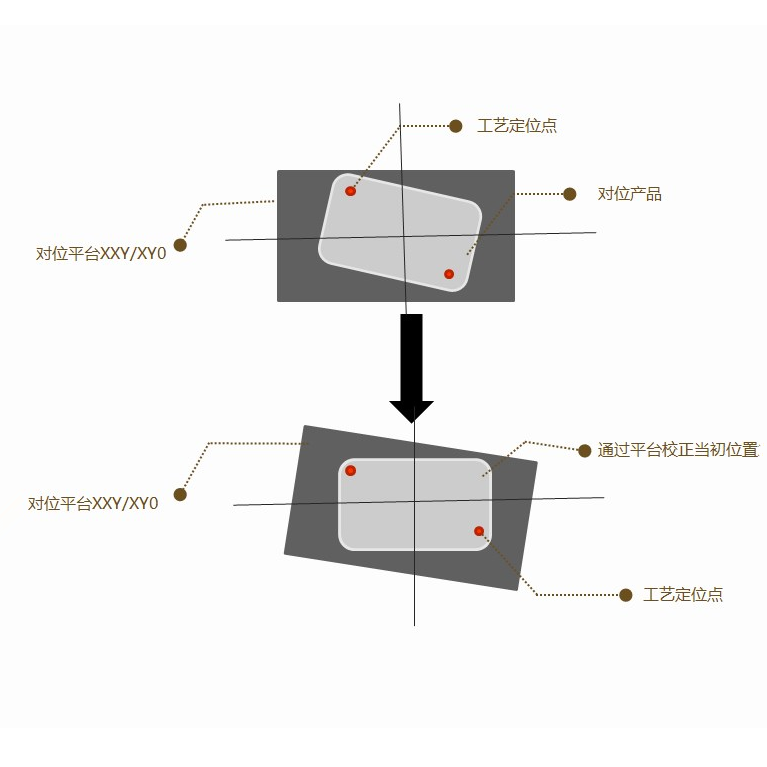

● The visual automatic alignment system works by taking pictures of the feature positions on the product through a CCD camera, industrial lens and light source, and collecting image data for image processing through image processing, and performing position calculations to determine the actual position of the product, and by comparing it with the previously set reference position to calculate the actual offset value of the product, and by controlling UVW and the movement of the visual alignment platform , the product moves to the previously set reference position to achieve fast, closed-loop, high-precision alignment.
Application Scenario
★ Laser cutting machine
★ CCD screen printing machine
★ Exposure machine alignment
★ FPC binding
★ PCB substrate drilling
★ Automatic correction glue dispenser
★ OCA bonding water glue bonding machine
