Detailed introduction:
CCD vision alignment system software
● Closed-loop alignment, high precision, high speed, about 400MS
● Two-camera, four-camera, single-camera optional
● Visual motion card controls XY0 UVW alignment platform
● Visual alignment 0.005-0.01MM
● IO docking PLC, easy operation

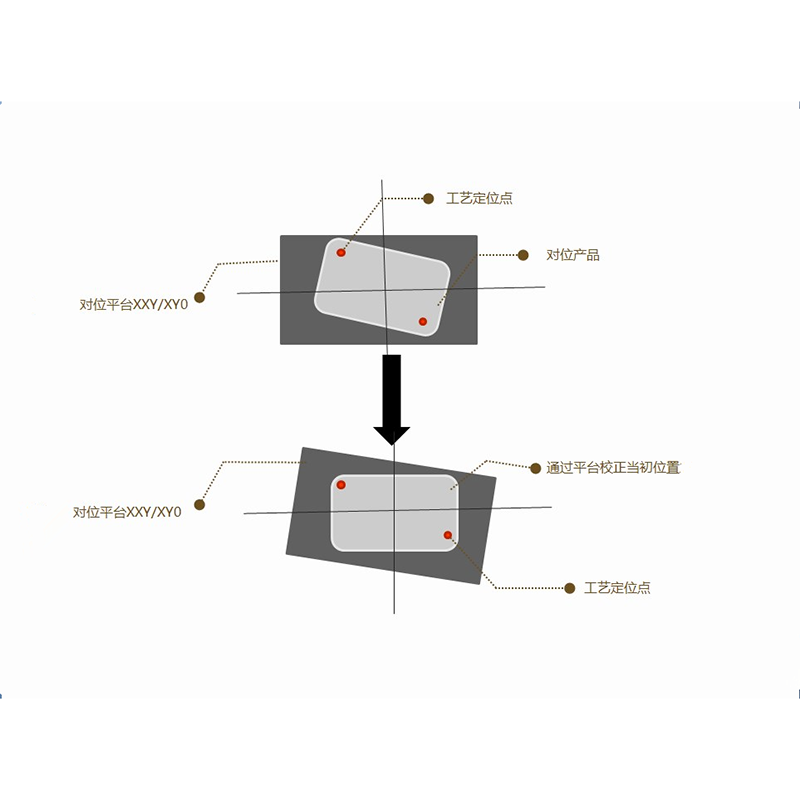

● Visual alignment soft system, the working principle is to use CCD camera, industrial lens and light source to take pictures of the characteristic position on the product, and collect image data through image processing, and perform position calculation to judge the actual position of the product, and calculate the actual offset value of the product by comparing it with the previously set reference position, and control the movement of UVW, XXY alignment platform to make the product move to the previously set reference position, so as to achieve fast, closed-loop, high-precision alignment.
Application scenarios
★ Laser cutting machine
★ CCD screen printing machine
★ Exposure machine alignment
★ FPC binding
★ PCB substrate drilling
★ Automatic correction dispensing machine
★ OCA bonding water glue bonding machine
