Equipment Introduction:

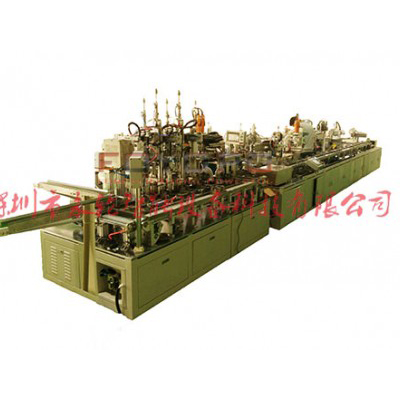

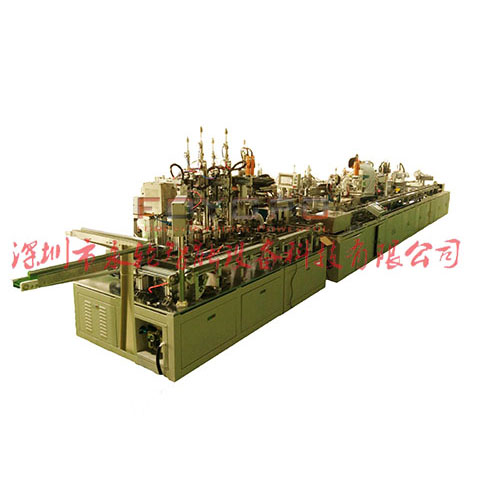

1. The valve core production line is an automated assembly line that mainly realizes automated production of the gas stove ignition valve core assembly process.
2. Equipment action: automatic feeding, dust removal, oiling, automatic assembly and testing on the vibration plate. The equipment can meet certain requirements of product technology (such as dust removal accuracy, oiling thickness, etc.).
3. This device is a general-purpose device.
4. Labor efficiency: 2-5 people 8-10pcs/min, this equipment efficiency: 5 people 15-18pcs/min, greatly reducing costs.
5. Equipped with a programmable controller (PLC), the mechanical actions are all designed by software and tested by computer to ensure that each action is reasonable and conflict-free. The equipment control interface is a full touch human-machine interface, which can be operated according to the prompts on the interface. It is simple and clear, and novices can also operate it skillfully. The equipment has automatic counting and automatic alarm functions, which is convenient for operators to calculate production and troubleshoot faults.
Application areas:

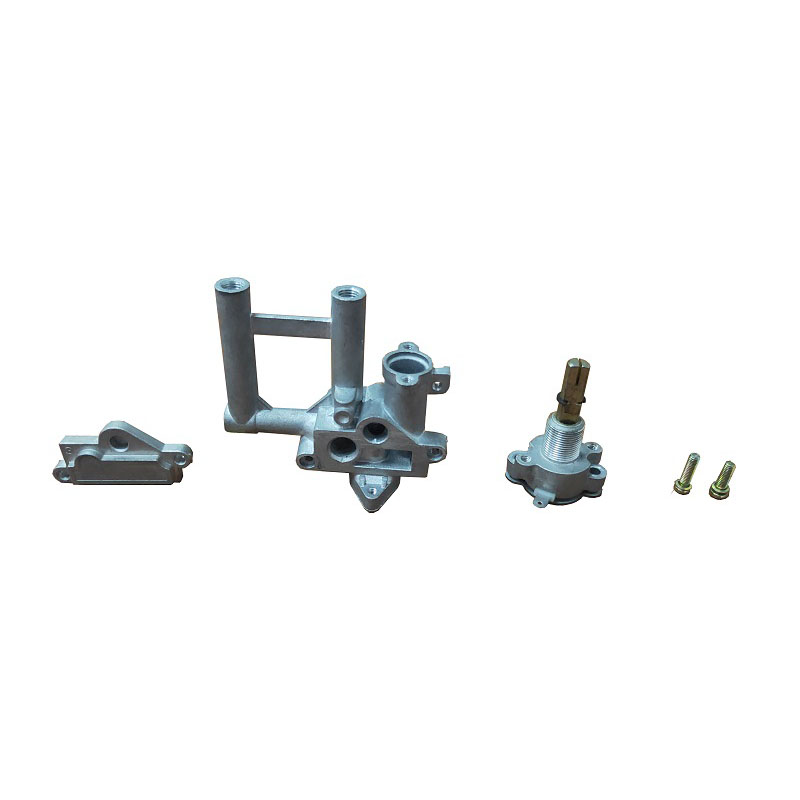

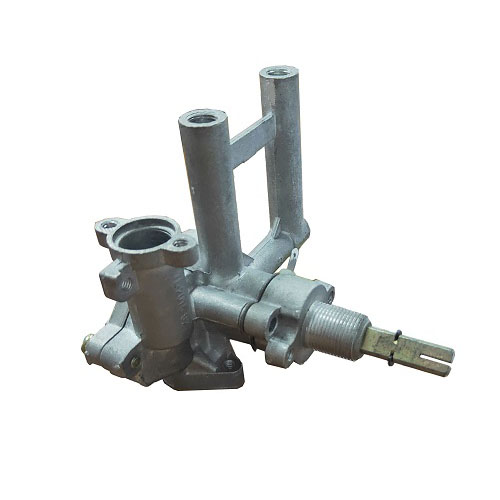

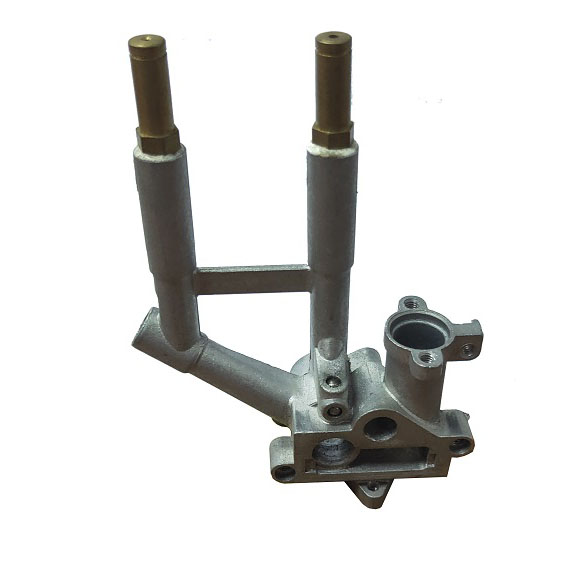

Gas stove ignition valve core.
Technical Parameters:
product name | Gas stove valve core automatic assembly line |
model | YL-FXSCX0311 |
power | 15KW |
Voltage | 220V/50Hz |
Air pressure | 0.4-0.6mpa |
Equipment capacity | 5 people 15-18PCS/min |
Features | Multiple general use |
Total weight of unit | 3500kg |
Overall dimensions (length x width x height) | 9500×800×1400mm |
