Equipment Introduction:
1. This equipment is a standard type, mainly used for automatic feeding in various industries to solve noise problems.
2. The equipment replaces the vibration plate feeding method of the traditional industry and reduces the equipment noise to a certain extent.
3. This device is a general-purpose device.
4. Equipped with a programmable controller (PLC), the mechanical actions are all designed by software and tested by computer to ensure that each action is reasonable and conflict-free. The equipment control interface is a full touch human-machine interface, which can be operated according to the prompts on the interface. It is simple and clear, and novices can also operate it skillfully. The equipment has automatic counting and automatic alarm functions, which is convenient for operators to calculate production and troubleshoot faults.
Application areas:
Low noise feeding in the hardware industry
Technical Parameters:

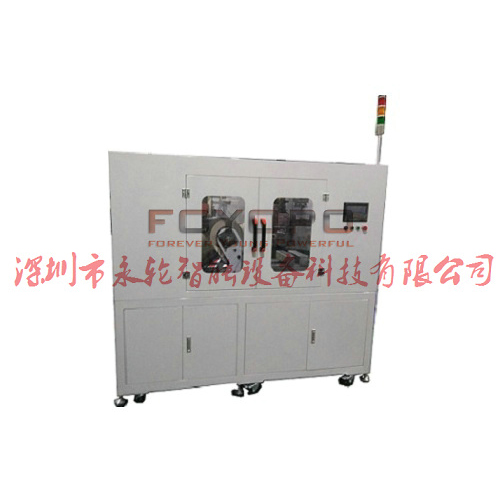

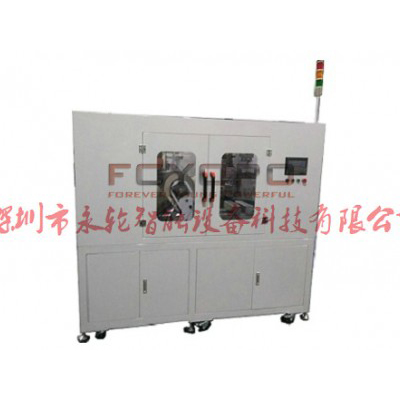

product name | Automobile turbofan lathe loading equipment |
model | YL-WＪ170３07 |
power | 2KW |
Voltage | 220V/50Hz |
Air pressure | 0.4-0.6mpa |
Equipment capacity | 60PCS/MIN |
Features | Multiple general use |
Total weight of unit | 800kg |
Overall dimensions (length x width x height) | 1800×800×1700mm |
