Equipment Introduction:

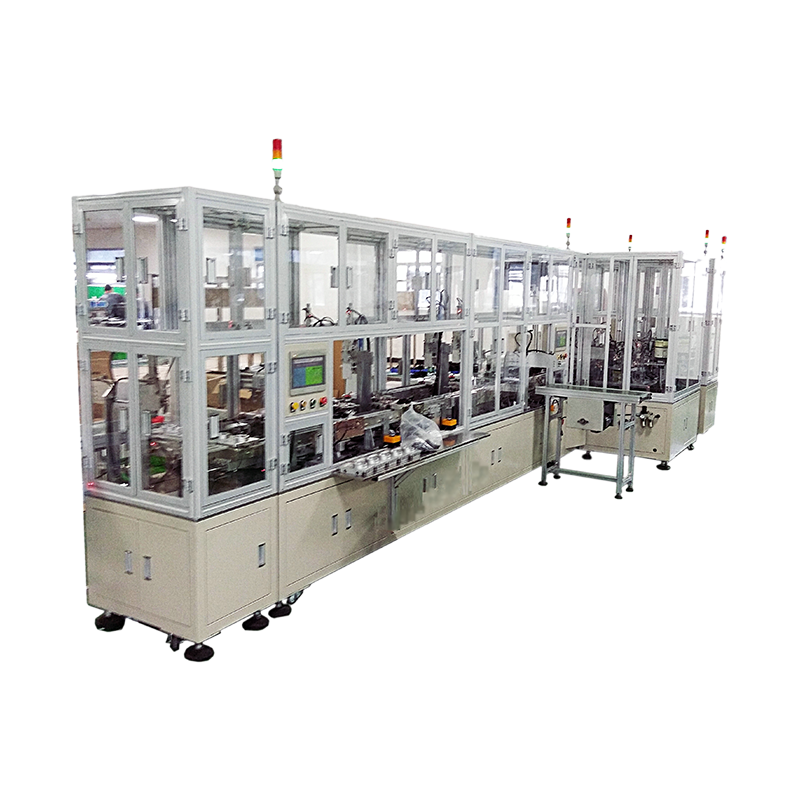

1. The automobile handbrake automatic assembly machine solves the traditional manual assembly, effectively reduces labor costs, realizes automatic assembly, automatic testing and other functions, and realizes truly unmanned automatic production.
2. This device is two universal devices.
3. This equipment is a fully automated equipment, with automatic loading of the vibration plate and the robot, automatic assembly, automatic oiling, automatic testing, and automatic unloading. The operator only needs to pour the processed products into the vibration plate, which is convenient and quick.
4. Equipped with a programmable controller (PLC), the mechanical actions are all designed by software and tested by computer to ensure that each action is reasonable and conflict-free. The equipment control interface is a full touch human-machine interface, which can be operated according to the prompts on the interface. It is simple and clear, and novices can also operate it skillfully. The equipment has automatic counting and automatic alarm functions, which is convenient for operators to calculate production and troubleshoot faults.
Application areas:

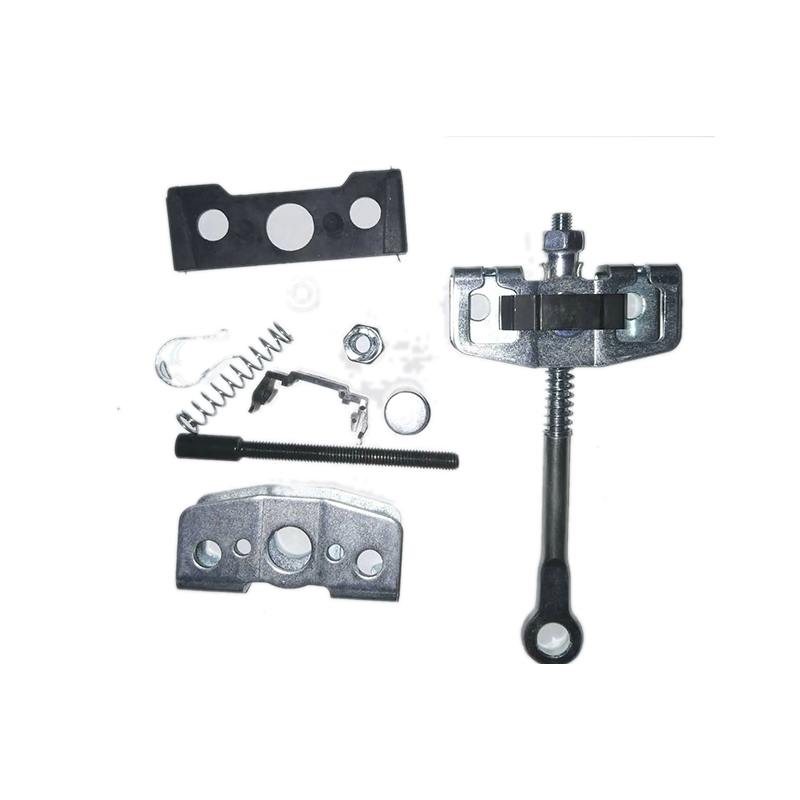

The automobile handbrake parts automated production line is used in the automotive industry: oil pump assembly, handbrake parts assembly, valve body assembly, or other hardware parts assembly!
Technical Parameters:
product name | Automobile handbrake automatic assembly machine |
model | YL-QC161022 |
power | 13KW |
Voltage | 380V/50Hz |
Air pressure | 0.4-0.7MPA |
Equipment capacity | 30-35PCS/MIN |
Features | Two universal models |
Total weight of unit | 4000kg |
Dimensions | 8000×2000×1800 |
