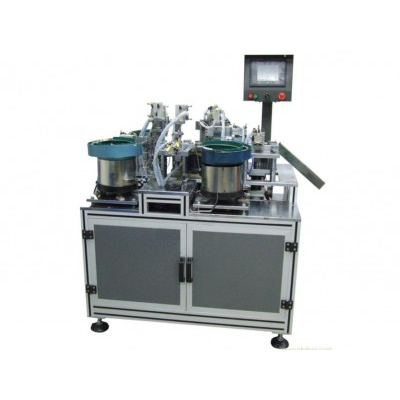

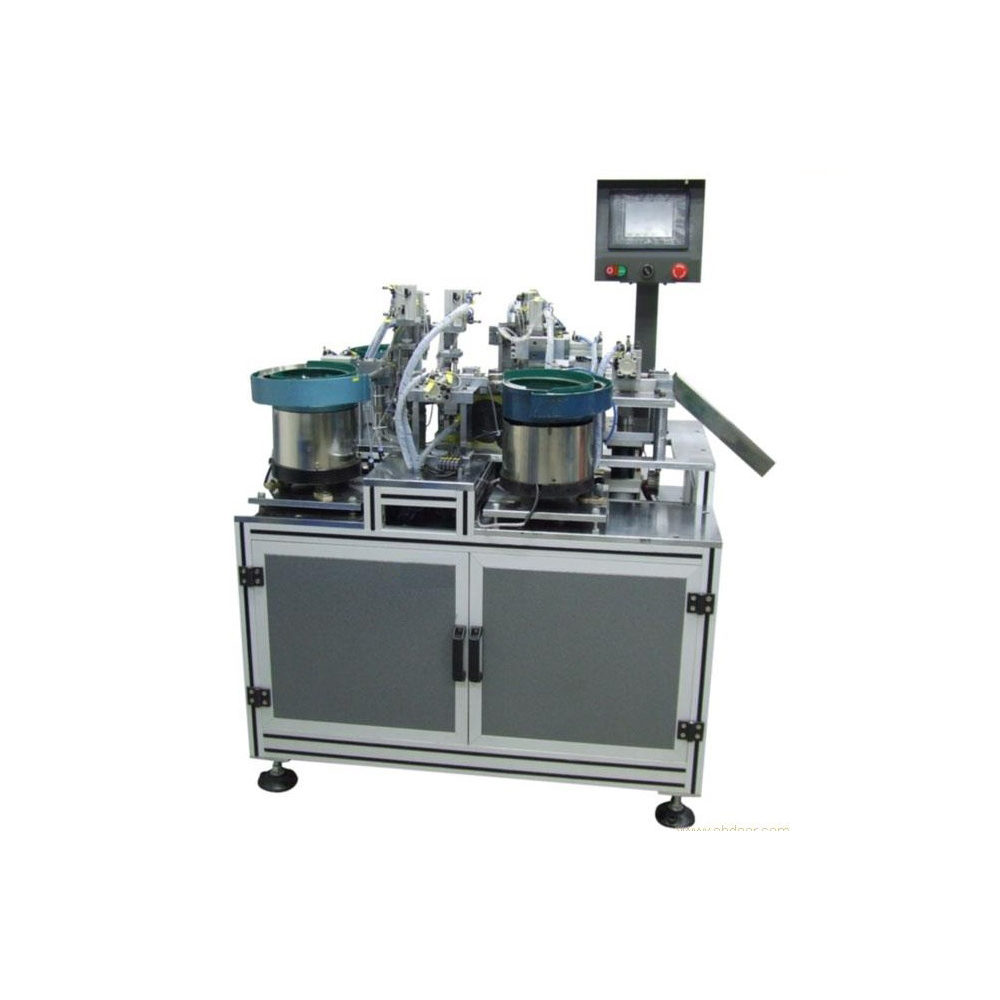

Equipment Introduction:
1. This equipment is fully automated, with automatic loading of the vibration plate, automatic material taking, automatic assembly, and automatic unloading. The staff only needs to pour the processed products into the vibration plate, which is convenient and fast, and one person can operate multiple devices at the same time.
2. This device is three universal devices.
3. Equipped with a programmable controller (PLC) , all mechanical actions are designed by software and tested by computer to ensure that each action is reasonable and conflict-free. The equipment control interface is a full touch human-machine interface, which can be operated according to the prompts on the interface. It is simple and clear, and novices can also operate it skillfully. The equipment has automatic counting and automatic alarm functions, which is convenient for operators to calculate production and troubleshoot faults.
Application areas:

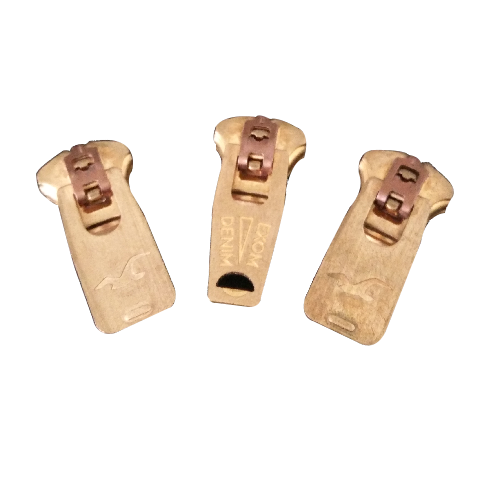

Zipper automatic assembly machine is used for zipper assembly of clothing, bags, etc.
Technical Parameters:
product name | Zipper automatic assembly machine |
model | YL-WJ160327 |
power | 2.7KW |
Voltage | 220V/50Hz |
Air pressure | 0.4-0.7MPA |
Equipment capacity | 25PCS/MIN (depending on the vibration speed) |
Features | Multiple universal |
Total weight of unit | 900kg |
Overall dimensions (length x width x height) | 1200×1200×1850mm |
