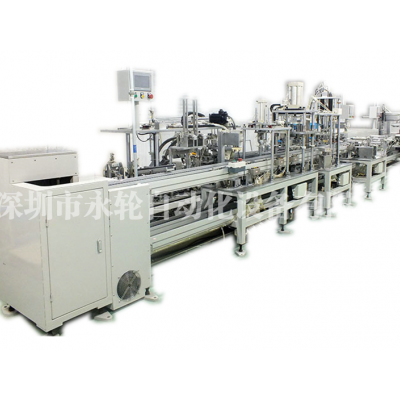

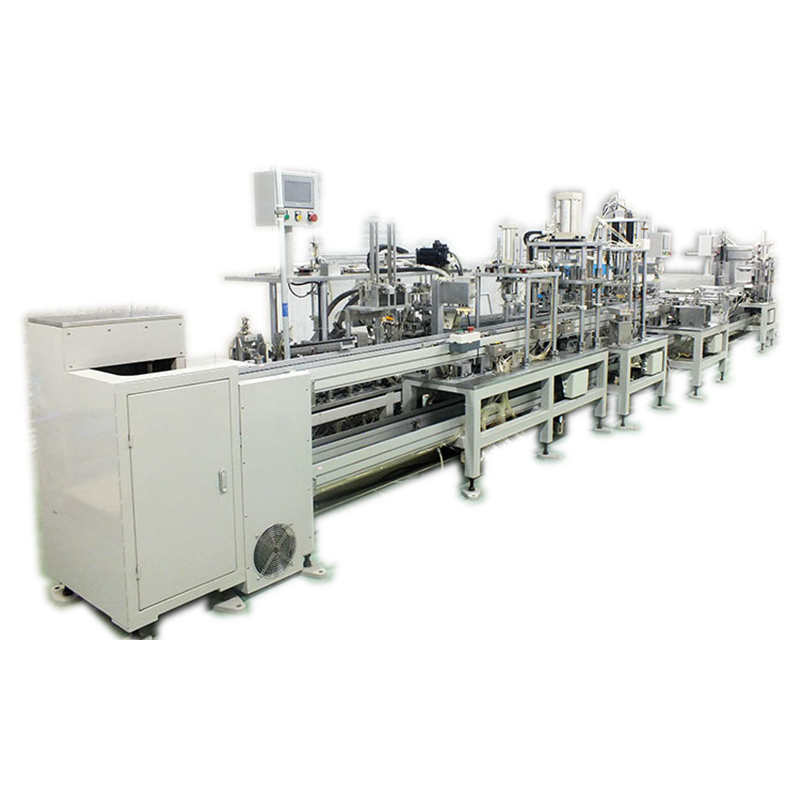

Equipment Introduction:

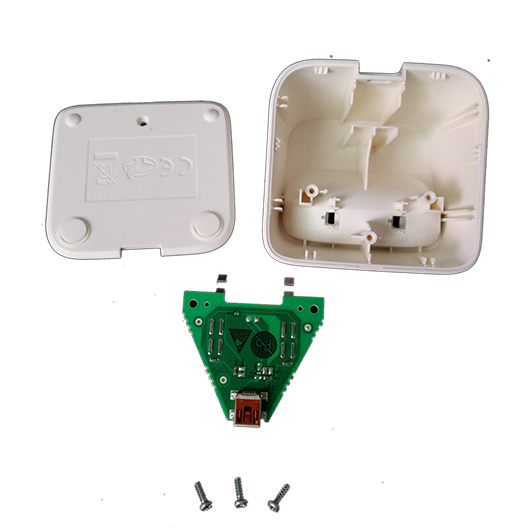

1. Equipment process: ⑴ Shell installation ⑵ Dust removal ⑶ Install circuit board ⑷ Lock screws ⑸ Plasma dust removal ⑹ Install cover ⑺ Lock screws ⑻ Paste rubber pads ⑼ Electrical performance testing ⑽ Automatic finished product placement.
2. This equipment solves the traditional manual assembly, effectively reduces labor costs, and reduces defective products caused by human factors. Automatic assembly and automatic testing realize truly unmanned automatic production.
3. This equipment is fully automated, with automatic loading of the vibration plate, automatic loading of the robot, automatic assembly, automatic detection, and automatic unloading. The operator only needs to pour the processed product into the vibration plate, and put the plastic shell into the plastic plate for automatic loading, which is convenient and fast.
4. Equipped with a programmable controller (PLC), the mechanical actions are all designed by software and tested by computer to ensure that each action is reasonable and conflict-free. The equipment control interface is a full touch human-machine interface, which can be operated according to the prompts on the interface. It is simple and clear, and novices can also operate it skillfully. The equipment has automatic counting and automatic alarm functions, which is convenient for operators to calculate production and troubleshoot.
Application areas:

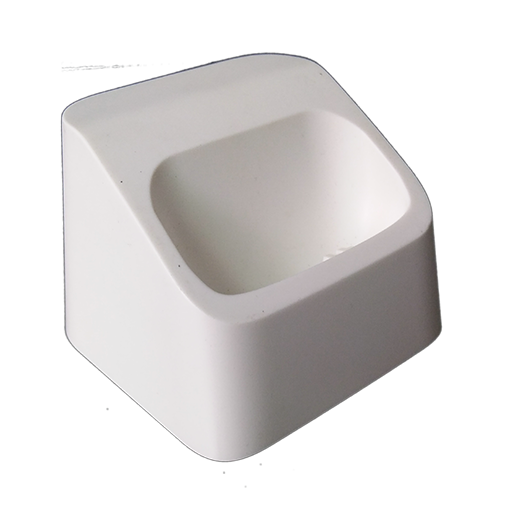

The charging stand fully automatic assembly machine is used in the electronics industry: charging stands, calculators, remote control panels and other electronic products.
Technical Parameters:
product name | Charging station automatic assembly machine |
model | YL-DZ161228 |
power | 8KW |
Voltage | 380V/50Hz |
Air pressure | 0.4-0.7MPA |
Equipment capacity | 30-35PCS/MIN |
Features | Single universal |
Total weight of unit | 8000kg |
Dimensions | 8000×2300×1800 |
