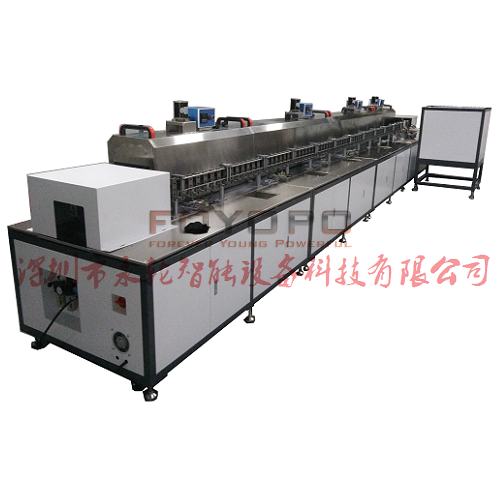

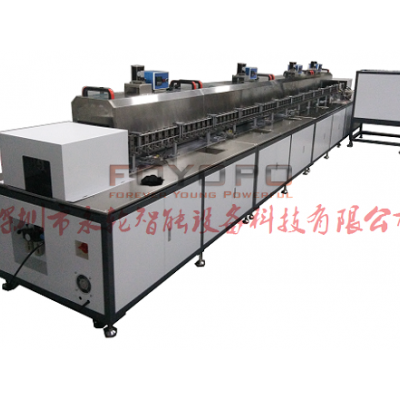

Equipment Introduction: Automatic handle painting equipment
1. This equipment is a standard type, mainly used for the automatic production of painting process for electronic shells, cosmetic shells, or other small product shells.
2. Equipment operation: automatic feeding by vibration plate, clamping by robot, chain line circulation, robot or manual painting, baking, and automatic discharging.
3. This device is a general-purpose device.
4. Manual inspection can check up to 5000 PCS/10H per day, while this equipment can check at least 18000 PCS/10H per day.
5. Equipped with a programmable controller (PLC), the mechanical actions are all designed by software and tested by computer to ensure that each action is reasonable and conflict-free. The equipment control interface is a full touch human-machine interface, which can be operated according to the prompts on the interface. It is simple and clear, and novices can also operate it skillfully. The equipment has automatic counting and automatic alarm functions, which is convenient for operators to calculate production and troubleshoot faults.
Application areas:
Painting and spraying processes for small products in various industries.
Technical Parameters:
product name | Automatic handle painting equipment |
model | YL-ＳＱ180３07 |
power | 15KW |
Voltage | 220V/50Hz |
Air pressure | 0.4-0.6mpa |
Equipment capacity | 30PCS/MIN |
Features | Multiple general use |
Total weight of unit | 800kg |
Overall dimensions (length x width x height) | 7500×800×1400mm |
