Equipment Introduction:
1. This equipment is fully automated. The plastic is manually poured into the vibration plate and the terminal plate is placed in the equipment. The equipment will automatically insert the terminals and remove the waste. It is convenient and fast. One person can operate multiple devices at the same time.
2. This device is three universal devices.
3. Equipped with a programmable controller (PLC) , all mechanical actions are designed by software and tested by computer to ensure that each action is reasonable and conflict-free. The equipment control interface is a full touch human-machine interface, which can be operated according to the prompts on the interface. It is simple and clear, and novices can also operate it skillfully. The equipment has automatic counting and automatic alarm functions, which is convenient for operators to calculate production and troubleshoot faults.
Application areas:
JACK audio connector automatic plug-in machine is used for assembling audio connectors of computers and audio appliances.
Technical Parameters:

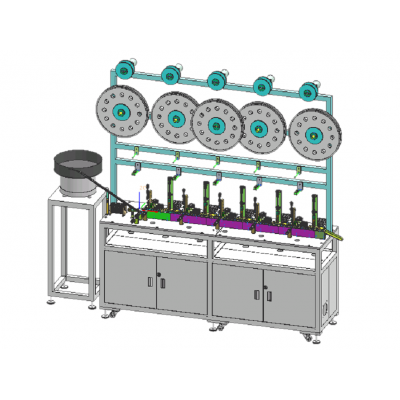

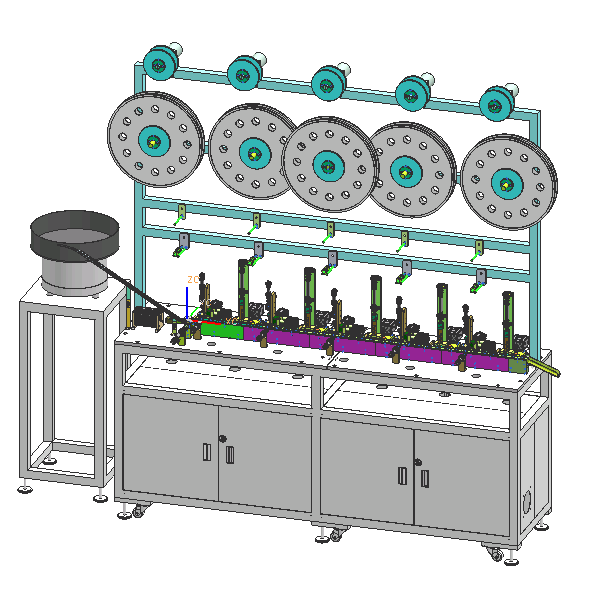

product name | JACK Audio Connector Automatic Terminal Machine |
model | YL-DZ160804 |
power | 2.7KW |
Voltage | 220V/50Hz |
Air pressure | 0.4-0.7MPA |
Equipment capacity | 60PCS/MIN |
Features | Multiple universal |
Total weight of unit | 900kg |
Overall dimensions (length x width x height) | 2000×600×2050mm |
