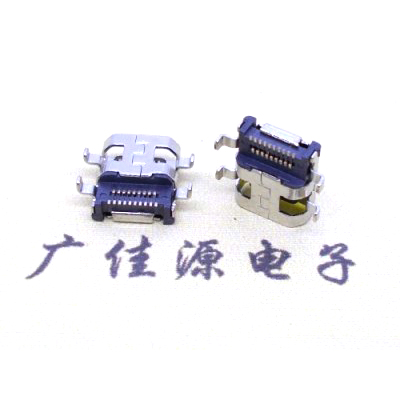

Mini HDMI 19Pin connector sunken board 0.8 female horizontal four-pin plug, HDMI female series specifications, belongs to the AB type HDMI high-definition female connector. Product volume is large, generally used in the audio-visual equipment is not subject to volume constraints, and the C-type HDMI busbar to distinguish (MINI-HDMI busbar), the HDMI busbar pin number of 19Pin, and the PCB board welding form for the DIP plug-board type, the interface weld plate structure for the immersed plate form, the depth of its broken board for 0.8mm, the fixed way to use the four pins of plug-board welded fixing! The 19Pin pin signal is set to two-way arrangement, the product material: hardware shell substrate for manganese steel material, surface plating for tin, plastic body for environmental protection and high temperature LCP plastic, Pin foot substrate for copper alloy, gold-plated surface of the contact end, the welding plate end of the surface plating fog tin (19Pin foot terminal plating nickel bottom) and the plastic body with a double-clip downward pressure fixing. More detailed appearance specifications size data and specific electrical performance parameters, you can directly view our PDF specification parameters, MINI HDMI 19P male/female connector. It has also become the standard interface for data transmission of digital products, and is widely used in computers, digital cameras, digital video cameras, measuring instruments, as well as mobile hard disks, digital charging devices and other equipment. Series of products such as professional production and processing has a complete, scientific quality management system, rely on the quality of the product to survive, rely on the support of our customers is the foundation of the development of our business. Welcome to call us!
