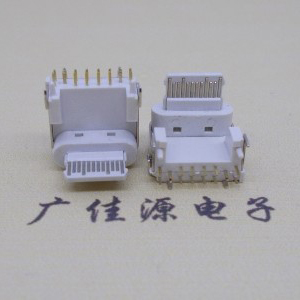

This product belongs to the USBtype-c2.0 series connectors under the TYPE C female, the main features of this product is no shell, the product contact terminals for the single rubber tongue structure, the use of its terminal products, plastic or hardware shell as the interface shell, the use of this structure can effectively enhance the unity of the product, so that the terminal product is more design sense. The TYPE C female chassis connector for the heightened type also known as the height of the pad type, Apple type-c16p female chassis 90 degrees height 5.6.mm18w20w interface, PCBA soldering board way to use the horizontal on-board-type board welding form, the height of the board is 9.15mm, height (pad height) height of 5.6mm. pin Pin Pin physical number of pins for 16P, using the full-insertion type form, which the second row of terminals of two pins respectively. The two pins of the second row of terminals are A4 and B9 VBUS and A9 and B4 VBUS combined pins, so in the name of the product is still called 16Pin female chassis, the bottom of the body of the plastic with double plastic positioning column, the length of its column 1.55mm, the positioning column not only to provide the SMT interface soldering board positioning function, but also has a certain role in fixing the interface. The tail of the plastic body has a hardware edge, which is fixed with the plastic body using double card points, and the tail pin is integrated in the hardware edge. Products used in the material: plastic body tongue for environmental protection and high temperature LCP beige color adhesive, hardware wrapping for high-strength stainless steel material, pin base material for high conductivity copper alloy, gold-plated surface contact end, soldering board end surface tin-plated, in order to simplify the production process, Pin pin terminal using a full pin 24P arrangement, but due to the insertion of the board end of the number of pins for the pin number of 14Pin (the number of signal foot bit 16Pin), so the terminals on the tongue. Therefore, some of the terminals on the tongue can not be used in practice, and PCBA connected to the pin Pin bit: A1, A4, A5, A6, A7, A8, A9, A12 and B1, B4, B5, B6, B7, B8, B9, B12. Detailed product dimensions specifications and specific electrical performance parameters, you can directly view the parameters of the Division I PDF specifications ( Product name: TYPE C female chassis connector without housing 16P plug single rubber core height 5.6mm), the product in the picture is our Division of the actual photo, can be used as a structural reference.
