A transformer is an electrical device that changes the size of AC voltage to achieve the transmission, distribution and conversion of electrical energy. Transformers are very common and important equipment in power systems, and are widely used in power transmission and distribution networks, industrial production, household electricity and other fields. In this article, I will introduce the working principle, structure, types, application fields and future development trends of transformers in detail, and comprehensively explore the relevant knowledge of transformers.
1. Working Principle
The working principle of the transformer is based on the law of electromagnetic induction. When an alternating current is passed through one side of the transformer, the generated alternating magnetic field will induce an induced electromotive force on the other side, thereby generating current. According to the law of magnetic induction, the magnitude of the induced electromotive force is proportional to the rate of change of the magnetic field. Since there are wires wound on both sides of the transformer, the induced electromotive force causes the flow of current, thereby forming a corresponding voltage on the output side.
2. Structure and working principle

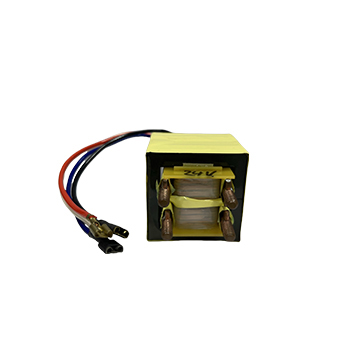

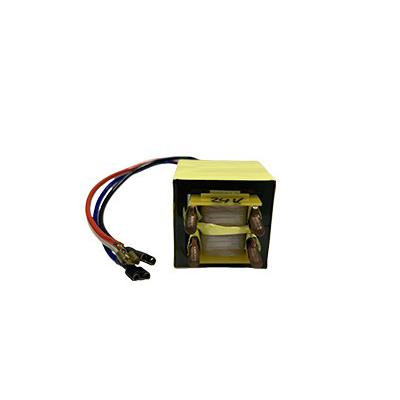

Transformers are generally composed of an iron core and windings. The iron core is made of laminated silicon steel sheets to improve magnetic flux continuity and reduce iron loss. The windings are divided into primary windings and secondary windings, with different coils wound on the iron core. When the input voltage is applied to the primary winding, the alternating magnetic field generated induces an induced electromotive force with the secondary winding, thereby forming an output voltage.
3. Type
1. Classification by purpose:
Power transformer: used for power transmission and distribution, including substation transformers, distribution transformers, etc.
Voltage regulating and isolating transformers: used to supply power to electrical equipment and protect equipment and users.
Control transformer: used to regulate voltage, current or power in a circuit.
Connecting transformer: It is used to connect two independent circuits and isolate them.
2. Classification by structure:
Oil-immersed transformer: A transformer that is cooled by oil and is widely used and has a high power.
Dry-type transformer : a transformer that does not require oil immersion and is suitable for some special environments.
4. Application fields
1. Power system: used to step up, step down, distribute and transmit electrical energy.
2. Industrial production: used for electric welding, electroplating, motor starting, etc.
3. Agricultural production: used for irrigation systems, motor drives, etc.
4. Electricity for buildings and households: used for power supply, starting and protection of electrical equipment.
5. Communications field: used for power supply and isolation of telecommunications equipment.
V. Development Trend
1. High efficiency and energy saving: Develop high efficiency and energy saving transformer technology to reduce grid losses.
2. Intelligence: Introduce intelligent monitoring and control technology to improve transformer operation and management efficiency.
3. Lightweight: Use new materials and structural design to reduce the size and weight of the transformer.
4. Low noise: Improve transformer design and manufacturing process to reduce noise during transformer operation.
5. Green and environmental protection: Promote the development of environmentally friendly transformer technology and reduce the impact on the environment.
As an indispensable component in the power system, transformers bear the core task of power transmission and distribution. With the continuous advancement of science and technology and the improvement of energy requirements, transformer technology is also constantly innovating and improving, providing better guarantees for the reliability, efficiency and safety of the power system. Transformers will continue to play an important role in promoting the sustainable development of the power industry.
