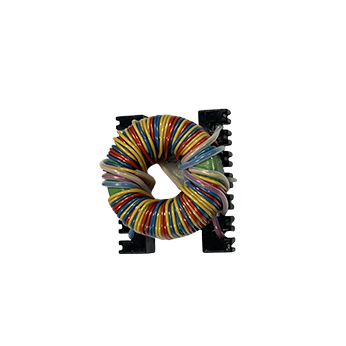

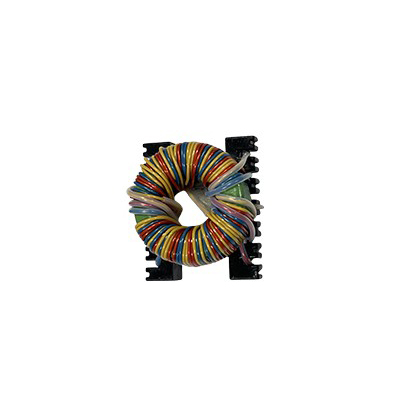

Photovoltaic inverter inductor is an inductor used in photovoltaic inverters for boost, buck, filtering and other functions. Photovoltaic inverters convert the direct current generated by solar photovoltaic panels into alternating current. In this conversion process, inductors are needed to assist in power conversion and current control to ensure system stability and efficiency.
In photovoltaic inverters, inductors play an important role, mainly including the following aspects:
1. Boost/Buck: PV inverter inductors play a key role in the DC/DC conversion link of boost or buck, converting the DC power output by the solar PV panel into a voltage suitable for the input of the AC side inverter.
2. Filtering: The photovoltaic inverter inductor is used as a filter to filter out the pulsating current output by the inverter, ensure the quality of the output sinusoidal current, and reduce harmonics and electromagnetic interference.
3. Current control: PV inverter inductors help limit the current waveform, control the stability and accuracy of the current, and improve the efficiency and reliability of the system.
When selecting a photovoltaic inverter inductor, you need to consider parameters such as its inductance value, rated current, and frequency response range to ensure the normal operation of the inverter system. In addition, the material and structure of the photovoltaic inverter inductor will also affect its performance and stability, so in actual applications, it is necessary to make appropriate selections and designs based on the needs and requirements of the system.
