DC electronic connector



Unit Price NegotaibleCompare
Inquiry Not available
Browse 45
Aarea Made in China
Expired Long-term validity
Update 2024-08-16 15:35

Detailed Explanation

Products: dc electronic connectors

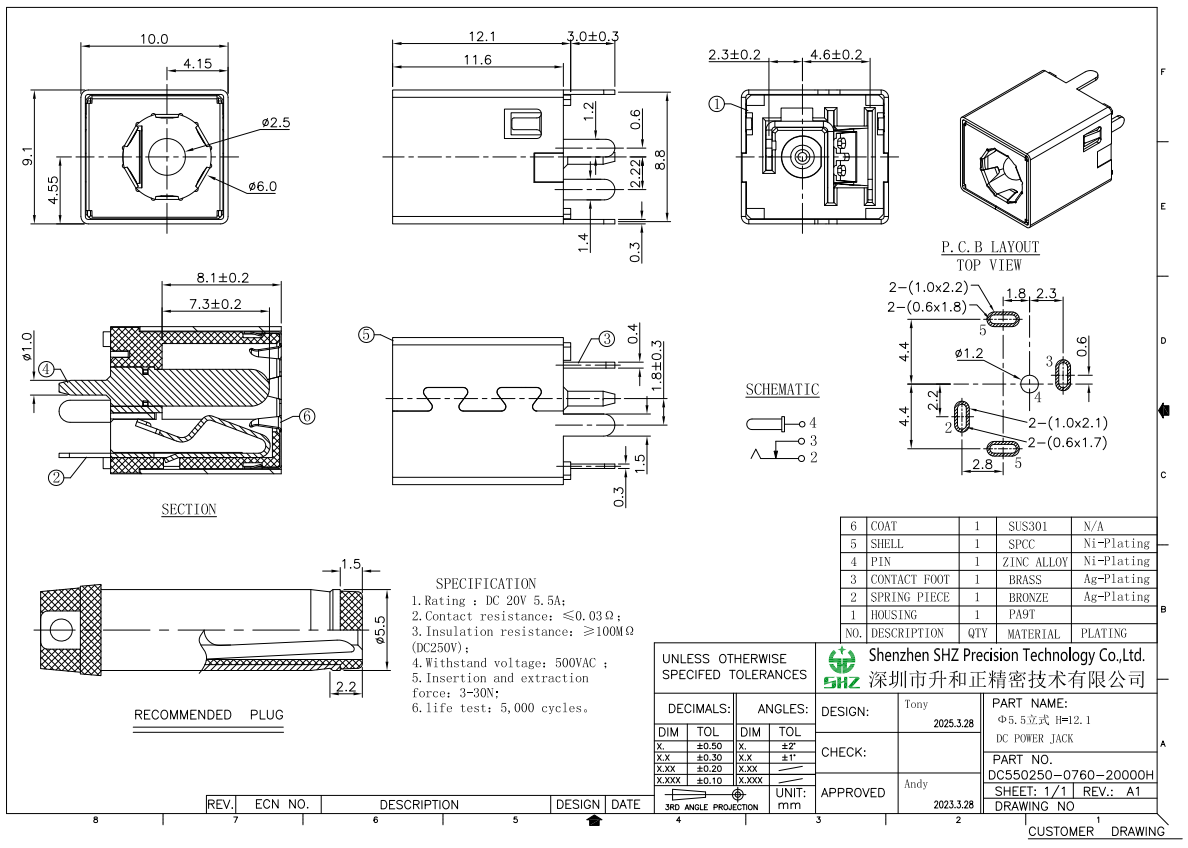

Model: DC550250-0760-20000H

Brand: SHZ

Contact material: Environmentally friendly high-performance hardware raw materials

Type: DC power socket

Product Series:5525

Installation angle: upright

Application: Power transmission

Plugging life: 5000 times

Standard: EIAJ

Mounting Type: SMD Soldering

IP rating: Not waterproof

Rated current: 7A

Rated voltage: 20V

The DC electronic connector is an interface device used to connect a DC power supply and has the following features:

1. Diversified design: The design of DC electronic connectors is diverse, including different plug shapes, interface specifications and polarities, etc., to meet the needs of different devices for power interfaces, providing more flexibility in choice.

2. High-efficiency transmission: DC electronic connectors can provide high-efficiency power transmission. Through reasonably designed contact methods and conductive materials, energy loss and heat generation are reduced, ensuring the stability and safety of power transmission.

3. Strong reliability: The DC electronic connector joint adopts a reliable connection method to ensure good contact between the plug and the socket, avoid safety problems such as power transmission interruption or electric shock, and ensure the safety of equipment and users.

4. Excellent durability: DC electronic connector joints are usually made of wear-resistant and high-temperature resistant materials, have a long service life, and are not easily damaged by the external environment, ensuring the stability and reliability of power connection equipment.

5. Convenient and easy to use: The DC electronic connector is easy to install, plug and unplug, and operate. Users can quickly connect or disconnect the power supply, which improves the availability and maintenance efficiency of the equipment.

In general, DC electronic connectors have the characteristics of diversified design, high-efficiency transmission, strong reliability, excellent durability and convenience. They are an important device in the field of power connection and can provide users with stable and safe DC power connection. I hope the above introduction is helpful to you.
