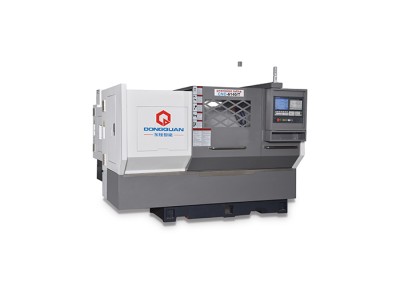

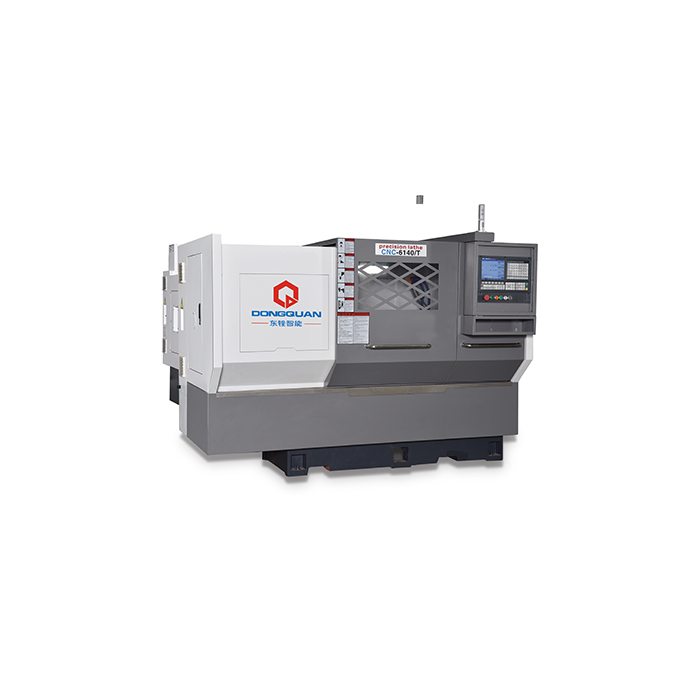

Product name: CNC lathe with Y-axis
Model: CNC-6140T
The flat-bed CNC gang tool lathe can be configured according to different production requirements of parts. It can be configured as a turning-milling compound lathe and a dual-spindle CNC gang tool lathe. Its structure is to add a Y-axis and a side milling power head or an end face power head on the slide to meet the needs of turning and milling compound processing. In addition, a sub-spindle can be added to the small slide, and a Y-axis, sub-spindle tool holder and cutting tool holder can be fixed on the side of the machine tool spindle box to realize automatic process exchange and second process processing. It can be equipped with an automatic feeder to realize fully automatic processing. It not only maintains the characteristics of good rigidity and high cutting accuracy of the gang tool lathe, but also solves the problem of two-process processing under one clamping of the workpiece. 6140S CNC lathe
1. Unitized spindle structure, more stable rotation.
2. Standard A2-4 spindle nose, can be used for spring chuck or hydraulic chuck.
3. The dovetail and T-slot knife press seat can move forward, backward, left and right, making knife arrangement more flexible.
4. The servo motor will not produce errors due to power outages.
