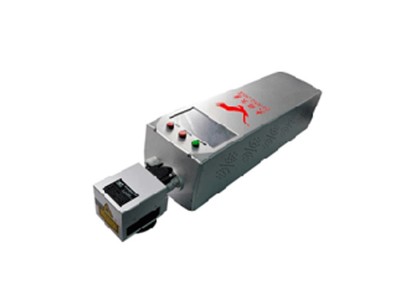

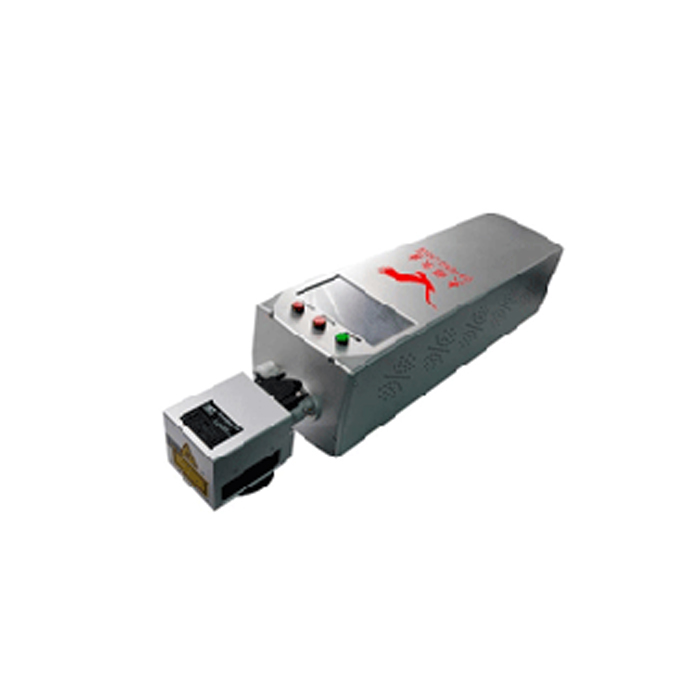

Product name: Integrated flying laser marking machine
The machine is small in size, highly integrated, a dedicated model for CO2 flight marking, and has a seven-inch touch panel
model | YLP-20CL-F | Engraving speed | ≤7000mm/s |
Laser power | 30W | Engraving depth | ≤1.0mm |
Laser wavelength | 10.6um | Power demand | AC220V±10%50Hz.10Amp |
Beam quality | M2<1.6 | Cooling method | Air Cooling |
Laser life | ≤50000hrs | Operating environment requirements | 1-35°C, 5%-80% |
Laser frequency | 1KHz-50KHz | Model size | 19cm*90cm*20cm (L*W*H) |
Engraving range | 110mm*110mm | net weight | 20KG |
Minimum line width | 0.03mm | ||
Minimum character | 0.03mm | ||
Repeatability | ±0.002mm |
Features:
The machine is small in size, highly integrated, a dedicated model for CO2 flight marking, and has a seven-inch touch panel
Product advantages:
Small size, save space
Applications:
Fly marking
Wood Products
Paper products
Rubber products
