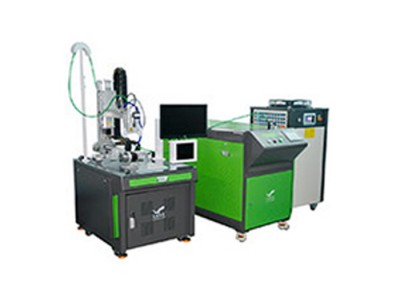

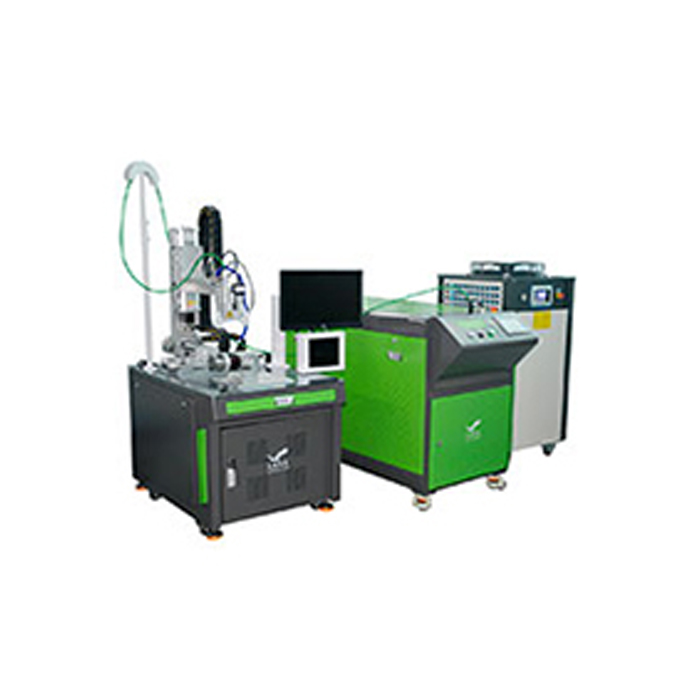

Product Name: Fiber Optic Transmission Laser Welding Machine
Optional CCD camera monitoring system for easy observation and accurate positioning. The energy distribution of the welding spot is uniform, with the best spot required for welding characteristics. It is suitable for various complex welds, spot welding of various devices, and seam welding of thin plates within 1mm. It adopts the ceramic focusing cavity imported from the UK, which is corrosion-resistant and high-temperature resistant. The cavity life is (8 to 10) years, and the xenon lamp life is more than 8 million times. Special automated fixtures can be customized to achieve mass production of products.
model | DPH-150ZD3-CS-W, DPH-150ZF-CS-W... | Aiming and positioning | CCD or red light |
Single pulse energy | 80J, 100J, 110J, 120J | size | About 250cm*117cm*150cm (L*W*H) |
wavelength | 1064nm | Control System | PC |
Rated output power | 150W, 300W, 500W | Scan range | Depends on the workbench |
Pulse Width | 0.3-20ms | weight | About 500kg |
Pulse frequency | 1-100Hz | System protection level | IP54 |
Minimum spot diameter | 0.3mm | Laser safety level | Class IV |
Power demand | 220V/50Hz/30A or 380V |
