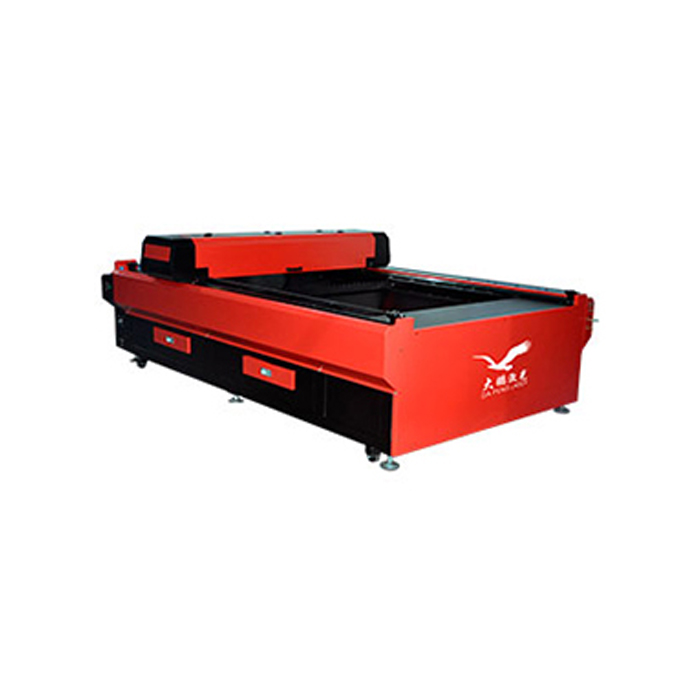

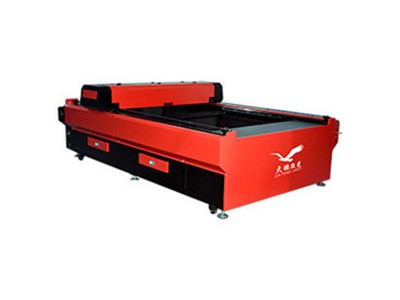

Product name: 2513 glass tube CO2 laser cutting machine
Laser processing has no mechanical pressure on the workpiece, so the effect, precision and cutting speed of the cut products are very good, the operation is stable, the incision is fine and smooth, and it also has the characteristics of safe operation and simple maintenance, and can work continuously for 24 hours. The cut dust-free cloth non-woven fabric does not turn yellow, the automatic edge is not scattered, does not deform, does not harden, the size is consistent and accurate; there is no burr, the size is standard, the error is small, the effect is soft, and there is no stiffness caused by high frequency or die cutting. It can cut any complex shape; high efficiency, low cost, computer design graphics, and can cut lace of any shape and size.
model | C02-80-2513, C02-100-2513, etc. | Positioning accuracy | ±0.01mm |
Laser Type | CO2 Laser | Optimal operating environment | Temperature 0-40°C, humidity 20%-80% |
Laser wavelength | 10640nm | Power demand | AC220V/50HZ |
Cutting format | 2500mm*1300mm | Cooling method | Water Cooling |
Minimum line width | < 0.1mm | Continuous operation | 24 hours |
Transmission mode | Belt conveyor | weight | < 500kg |
Cutting speed and thickness | Depends on the specific material | Dimensions | About 150cm* 286cm*110cm (L*W*H) |
Laser Generator | Standard original laser, other brands of laser can be selected | Machine power | 2KW |
