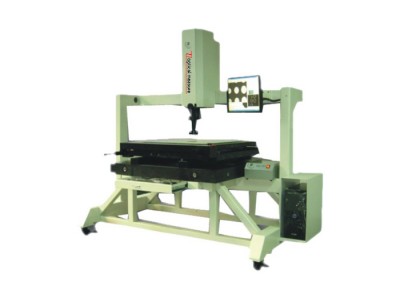

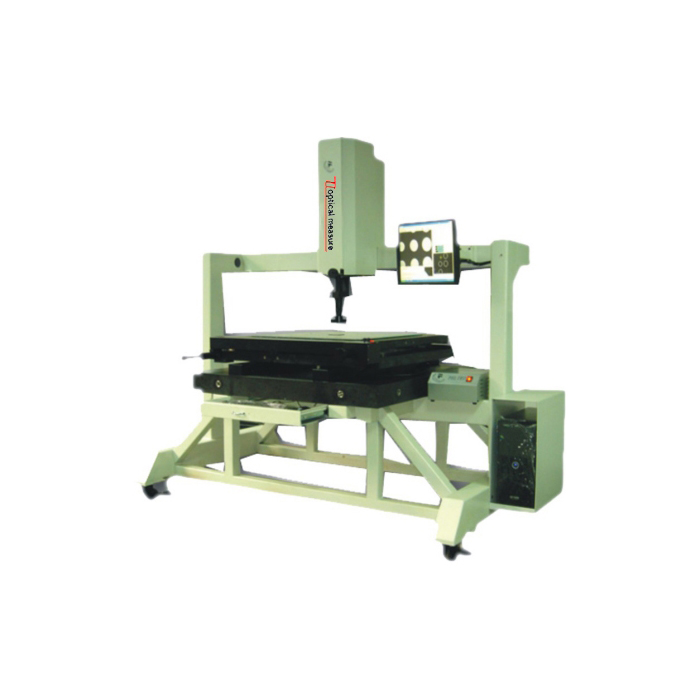

Large stroke manual optical image measuring instrument QMH series
Product Introduction
The QMH series steel frame large-scale optical image measuring instrument adopts a brand-new design: the workbench adopts a marble tabletop with more stable performance, the Z axis and dimming board adopt a brand-new front design for easy operation, and is equipped with a 17-inch LCD display and a Step Zoom lens. Combined with the software, no calibration is required at a fixed magnification; in terms of software, it adopts semi-automatic measurement software with more powerful functions and high cost performance.
Features
1. Granite base and columns, the structure will never deform.
2. Z-axis front transmission system for easy operation.
3. Lens: Step-Zoom fixed-frame lens, combined with software, no linear correction is required at fixed magnification.
4. A self-developed multi-purpose calibration sheet is randomly attached, which can be used not only for teaching exercises but also for accuracy calibration.
5. Semi-automatic measurement software.
Technical Parameters
Main models | QMH600 | QMH700 |
Upper platform size (mm) | 850x850 | 890x850 |
Measuring stroke(mm) | 600x600x300 | 700x600x300 |
Overall size (mm) | 2100x1200x2025 | 2100x1250x2025 |
Machine base and column materials | High precision granite | |
How it works | Manual, upgradeable to NC or automatic | |
CCD | American TEO high-definition color CCD | |
Lenses | step zoom lens, optical magnification 0.7X~4.5X, image magnification: 28X-180X | |
Magnification | Optical magnification: 0.7X-4.5X; Image magnification: 28X-180X | |
software | Precision measurement system software | |
Optical scale resolution | 1μm | |
Repeatability | 2μm | |
Measurement accuracy | (3+L/200)μm | |
Machine load bearing | 30kg | |
Usage Environment | Power supply: 110V~220V±10% 50/60HZ Temperature: 20±5℃ Humidity: 45%-75% | |
Warranty | 1 year | |
Application areas:
Widely used in machinery, electronics, molds, plastics, die cutting, precision hardware, precision stamping, connectors, connectors, terminals, mobile phones, home appliances, computers, LCD TVs, circuit boards (PCB), automobiles, watches, etc.
