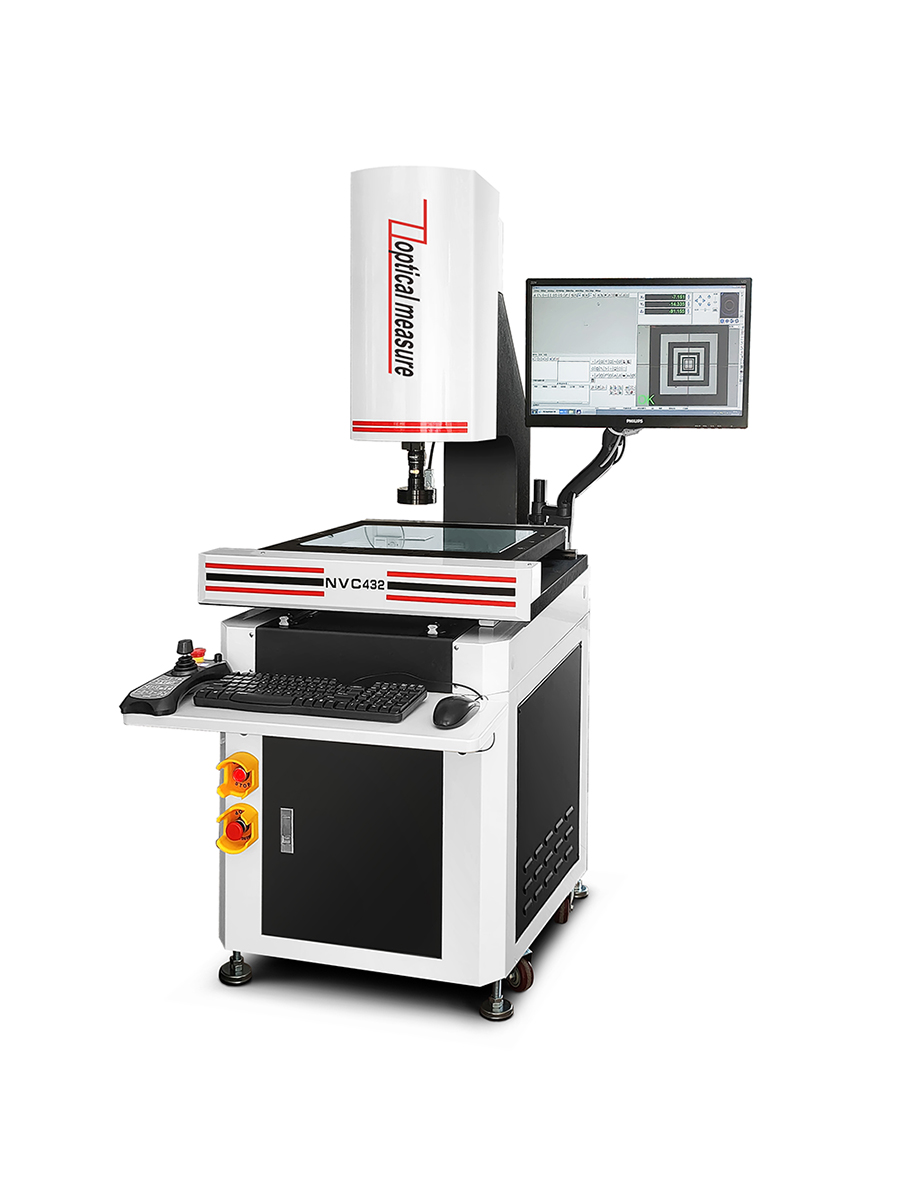

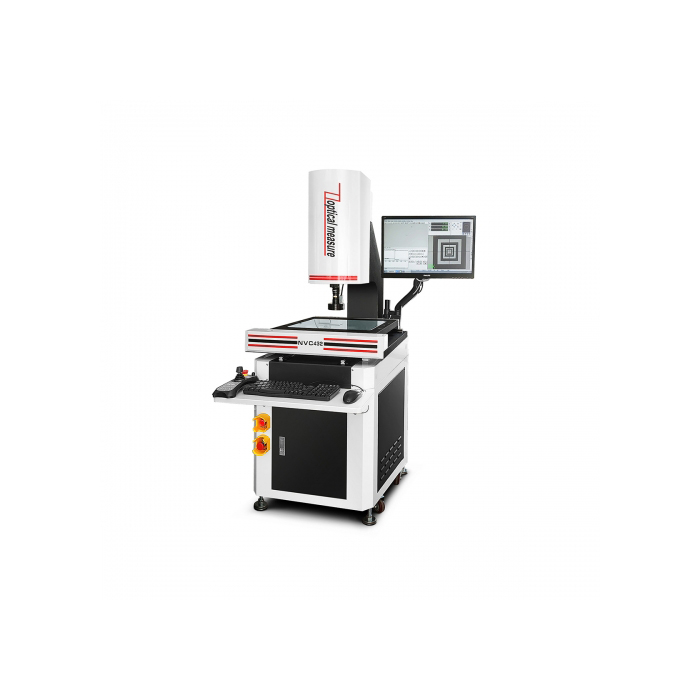

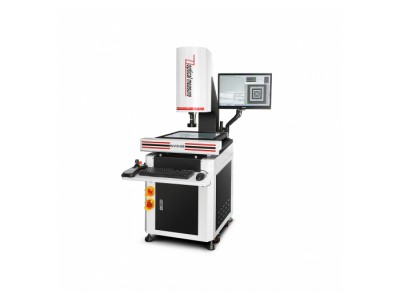

NVC series small stroke fully automatic optical image measuring instrument
Technical parameters:
1 | Instrument Model | NVC 3 22 | NVC432 | NVC 65 2 |
2 | Stroke(mm) | 300*200*200 | 400*300*200 | 6 00* 5 00*200 |
3 | Overall size (mm) | 7 0 0*1 1 6 0*1 6 68 | 7 0 0*1 16 0*1 668 | 950 * 1360 * 1668 |
4 | Actual effective range ( mm ) | X-axis: 300 / Y-axis: 200 | X-axis: 400 / Y-axis: 300 | X-axis: 6 00 / Y-axis: 5 00 |
5 | Instrument weight ( KG ) | 4 5 0 | 4 80 | 650 |
6 | Instrument load-bearing capacity ( KG ) | 30 | ||
7 | Machine base and column material | High precision granite | ||
8 | CCD Camera | American TEO high-definition color CCD | ||
9 | Lens | Fully automatic imported zoom lens | ||
10 | Grating scale resolution | 1 um ( 0.5 um optional) | ||
11 | X , Y axis accuracy (um) | 3+L/200 | ||
12 | Drive mode | Three-axis DC servo motor drive | ||
13 | Motor control method | Intelligent integrated control (mouse, joystick) | ||
14 | Surface lighting | Five rings and 8 zones with multi-angle programmable lighting | ||
15 | Contour lighting | LED ultra -bright round cold light source | ||
16 | Calculation measurement function | Fully automatic image precision measurement system software | ||
17 | Usage Environment | Power supply: AC 220V 50/602HZ Temperature 22 ± 5 ℃ Humidity 45%-75% | ||
18 | Warranty | 12 months | ||
Features :
NVC series fully automatic optical image measuring instrument is a testing equipment launched by Jiatai Company for the dimensional control of parts in the 3C industry. The instrument adopts a servo control system with an original American NAVITAR lens, which can quickly and easily achieve accurate measurement of various complex surface workpieces.
● Beautiful appearance design, more user-friendly functional design. ● New design can programmatically control 40-phase lamps, and the workpiece boundary is clearer. ● Screw drive, low noise, accurate positioning, and smoother operation. ● The guide rail is directly mounted on the 00-grade marble table to ensure the running accuracy of the guide rail. ● The new version of CNC software has a friendly interface, simple operation, and strong stability. ● Laser and probe measurement modules can be added.
Application areas:
Widely used in machinery, electronics, molds, plastics, die cutting, precision hardware, precision stamping, connectors, linkers, terminals, mobile phones, home appliances, computers, liquid crystal televisions ( LCD ), circuit boards ( PCB ), automobiles, clocks, etc.
