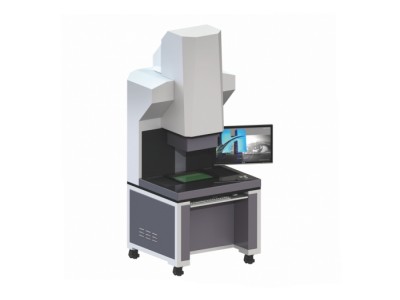

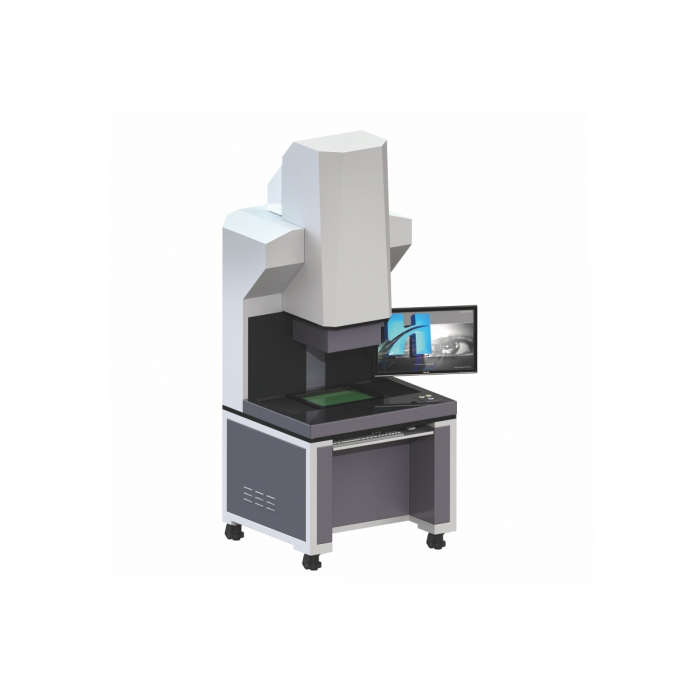

One-button quick measuring instrument
Features
nDual telecentric lens, no perspective error, near zero distortion, high depth of field, measurement without focusing
nProducts can be measured at any angle , quickly scan contours, and export DXF files
nIntelligent light source control, software automatic fill light, ensure the consistency of light source
nTouch -sensing switch starts measurement to prevent finger pain caused by pressing mechanical buttons for a long time
nAutomatic matching: the same type of product can be programmed once and saved permanently. It can be automatically matched during measurement and can be fully controlled according to the tolerance entered during programming.
nEasy calibration , only one function calibration key is needed, multi-angle, all-round, full-view calibration to ensure measurement accuracy
n Simple and user-friendly, intelligent software design, no need for excessive user operations, easy to learn and use
nMeasurement function: point, line, circle, arc, angle, point-line distance, line-line distance, circle-circle distance and other two-dimensional dimension measurement
nMeasurement data is automatically saved to the computer, including measurement date, product batch number and other information
Technical Parameters
model | OMQ100 | OMQ190 |
Z axis moving range ( mm ) | 45 | 60 |
Measuring range ( mm ) | 83X55 | 190X120 |
External dimensions ( mm ) | 500X380X750 | 800X750X1800 |
Weight ( kg ) | 28 | 280 |
Load-bearing capacity ( kg ) | 3 | 5 |
Image Sensor | 12 megapixel industrial camera | 20 megapixel industrial camera |
Lenses | Bi-telecentric optical lens | |
Measurement accuracy ( um ) | ±(3+L/50) Taking the standard block as the product under test | ±(3.8+L/50) Taking the standard block as the product under test |
Minimum display unit ( mm ) | 0.001 | |
Z -axis working distance ( mm ) | 135 | 340 |
software | IVT-VISION | |
light source | 256 -level programmable light source, contour light: telecentric parallel light source, surface light: ring light source (optional, external coaxial light) | |
Image Processing | IVT advanced image analysis method, 256 gray levels, 10 : 1 sub-pixel processing technology | |
Usage Environment | Power supply: 110V-220V 50/60HZ Temperature: 20 ±5℃ Humidity: 45%-75% | |
Application areas:
Machinery, electronics, molds, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision stamping, connectors, connectors, terminals, mobile phones, home appliances, printed circuit boards, medical equipment, watches, knives and other fields
