Technical parameters:
1 | Instrument Model | VMC300 | VMC400 | VMC500 |
2 | Stroke(mm) | 300*200*200 | 400*300*200 | 500*400*200 |
3 | Overall size (mm) | 1300*850*1650 | 1500*950*1650 | 1700*1100*1650 |
4 | Actual effective range (mm) | X-axis: 400 / Y-axis: 300 | X-axis: 400 / Y-axis: 300 | X-axis: 500 / Y-axis: 400 |
5 | Instrument weight (KG) | 220 | 280 | 360 |
6 | Instrument load-bearing capacity (KG) | 30 | ||
7 | Instrument material | 00-grade marble base, columns, and work surfaces are durable, beautiful, and will not deform. | ||
8 | CCD Camera | American TEO high-definition color CCD | ||
9 | Mirror | step zoom lens, optical magnification 0.7X~4.5X, image magnification: 28X-180X | ||
10 | Grating scale resolution | 1um (0.5um optional) | ||
11 | X, Y axis accuracy (um) | 3+L/200 | ||
12 | Drive mode | Automatic, mouse or joystick operation, three-axis DC servo motor drive | ||
13 | Surface lighting | 3-ring 8-zone multi-angle programmable light source | ||
14 | Contour lighting | Programmable LED super bright round cold light source | ||
15 | Calculation measurement function | Fully automatic image precision measurement system software | ||
16 | Usage Environment | Power supply: AC 220V 50/602HZ Temperature 22±5℃ Humidity 45%-75% | ||
17 | Warranty | 12 months | ||

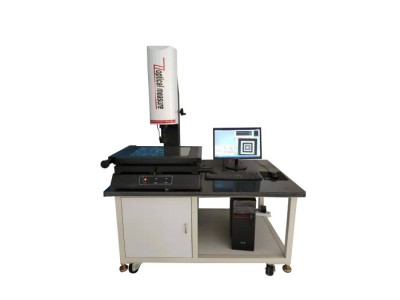

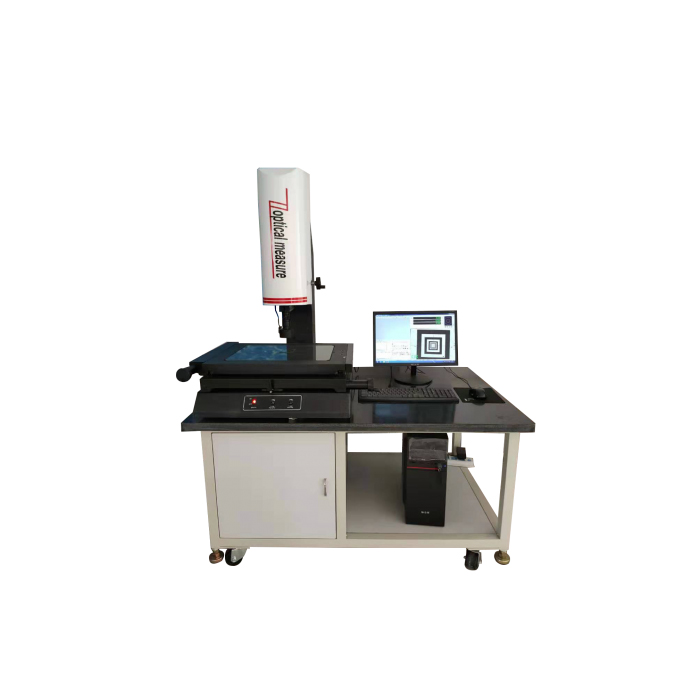

Features of VMC series image measuring instruments :
● It adopts high-precision granite structure, which will never deform, has high stability and looks elegant and beautiful.
● High-precision grating system; high-resolution color CCD.
● P-grade guide rail; high-precision ground screw drive.
● High-performance servo system; high precision, high efficiency and high stability.
● LED light source can be adjusted in different areas; it can be projected in different directions.
● The manipulator controls CNC functions; automatic focus; automatic zoom; automatic edge search; automatic lighting control; automatic measurement; ensuring high measurement efficiency.
● Industry-leading independent professional measurement software combination.
● Optional imported RENISHAW high-precision contact probe set; optional high-precision laser tester (which can realize image/probe/laser coaxial automatic programming composite measurement).
Application areas:
Widely used in machinery, electronics, molds, plastics, die cutting, precision hardware, precision stamping, connectors, connectors, terminals, mobile phones, home appliances, computers, LCD TVs, circuit boards (PCB), automobiles, watches, etc.
