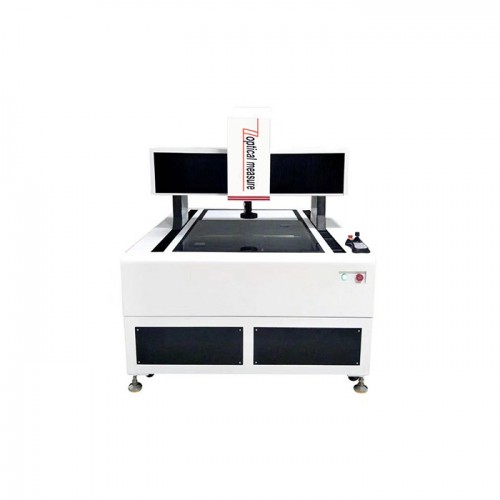

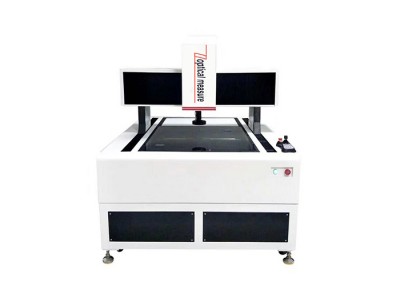

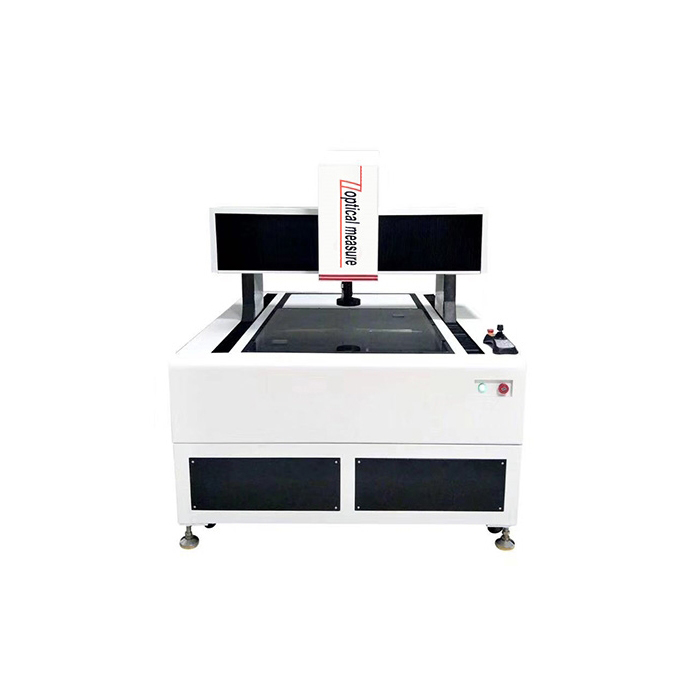

Technical parameters:
1 | Instrument Model | NVC800 | NVC1200 | NVC1600 |
2 | Stroke(mm) | 600*800*200 | 1000*1200*200 | 1400*1600*200 |
3 | Overall size (mm) | 650*1850*1750 | 1400*1900*1750 | 1800*2100*1750 |
4 | Actual effective range (mm) | X-axis: 600 / Y-axis: 800 | X-axis: 1000 / Y-axis: 1200 | X-axis: 1400 / Y-axis: 1600 |
5 | Instrument weight (KG) | 1500 | 2000 | 2800 |
6 | Instrument load-bearing capacity (KG) | 50 | ||
7 | Machine base and column material | High precision granite | ||
8 | CCD Camera | American TEO high-definition color CCD | ||
9 | Mirror | Fully automatic imported zoom lens | ||
10 | Grating scale resolution | 1um (0.5um optional) | ||
11 | X, Y axis accuracy (um) | 3+L/200 | 4+L/200 | 4.5+L/200 |
12 | Drive mode | Three-axis DC servo motor drive | ||
13 | Motor control method | Intelligent integrated control (mouse, joystick) | ||
14 | Surface lighting | 5-ring 8-zone multi-angle programmable light source | ||
15 | Contour lighting | Programmable LED super bright round cold light source | ||
16 | Calculation measurement function | Fully automatic image precision measurement system software | ||
17 | Usage Environment | Power supply: AC 220V 50/602HZ Temperature 22±5℃ Humidity 45%-75% | ||
18 | Warranty | 12 months | ||
Features:
● It adopts high-precision granite structure, which will never deform, has high stability and looks elegant and beautiful.
● High-precision grating system; high-resolution color CCD.
● P-grade guide rail; high-precision ground screw drive.
● High-performance servo system; high precision, high efficiency and high stability.
● LED light source can be adjusted in different areas; it can be projected in different directions.
● The manipulator controls CNC functions; automatic focus; automatic zoom; automatic edge search; automatic lighting control; automatic measurement; ensuring high measurement efficiency.
● Industry-leading independent professional measurement software combination.
● Optional imported RENISHAW high-precision contact probe set; optional high-precision laser tester (which can realize image/probe/laser coaxial automatic programming composite measurement).
Application areas:
Widely used in machinery, electronics, molds, plastics, die cutting, precision hardware, precision stamping, connectors, connectors, terminals, mobile phones, home appliances, computers, LCD TVs, circuit boards (PCB), automobiles, watches, etc.
