Manual Coordinate Measuring Machine
Product Introduction

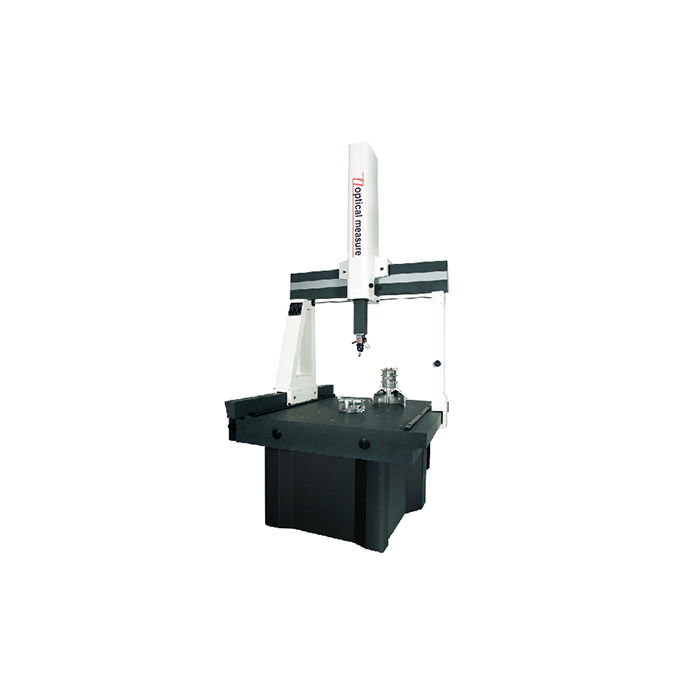

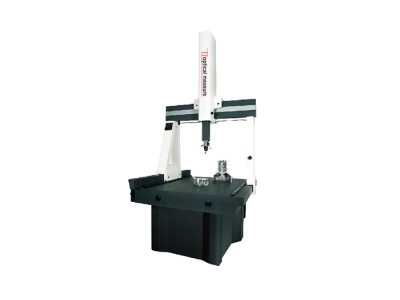

The JTF564 manual three-dimensional coordinate measuring machine is one of the measuring instruments with the best performance-price ratio among similar products. The accuracy of this machine can reach microns. The manual version of the measuring software used by this measuring machine has a friendly user interface and is very easy to operate. Even if the operator is not familiar with the measurement operation, he can measure complex work after using it for one or two days.
Features
● The whole machine design adopts a single-sided movable bridge structure, which greatly reduces the weight of the movable frame, significantly improves the motion performance of the system, and ensures measurement accuracy and stability.
● The three-axis guide rails are all made of high-precision natural granite, so that the three axes have the same temperature characteristics, ensuring good temperature stability and rigidity during the measurement process.
● The three-axis guide rails all use self-cleaning preloaded high-precision air bearings to make the movement smoother and the guide rails will never be worn.
● The length measurement system uses the self-adhesive open metal grating scale of UK RENISHAW, which makes the thermal expansion coefficient of the grating scale close to that of the granite substrate, thereby improving the stability of the equipment.
● The measurement results can be directly exported into standard data files (IGES or DXF), supporting reverse engineering.
Technical parameters
model | JTF564 | JTF875 | |
Stroke (mm) | X | 500 | 700 |
Y | 600 | 800 | |
Z | 400 | 500 | |
Grating scale resolution (μm) | 0.5 | ||
Accuracy index/μm | 3.5+L/250 | 4.5+ L/250 | |
Z-axis balance | Counterweight | ||
Locking system | Pneumatic locking | ||
Dimensions (mm) | 1010*950*2180 | 1220*1150*2400 | |
Machine weight (kg) | 550 | 700 | |
Machine load (kg) | 500 | ||
Compressed air MPA | 0.6~0.8 | ||
Usage Environment | Power supply: AC 220V 50/602HZ Temperature 22±5℃ Humidity 45%-75% | ||
Application areas:
Widely used in machinery, electronics, molds, plastics, die cutting, precision hardware, precision stamping, connectors, connectors, terminals, mobile phones, home appliances, computers, LCD TVs, circuit boards (PCB), automobiles, watches, etc.
