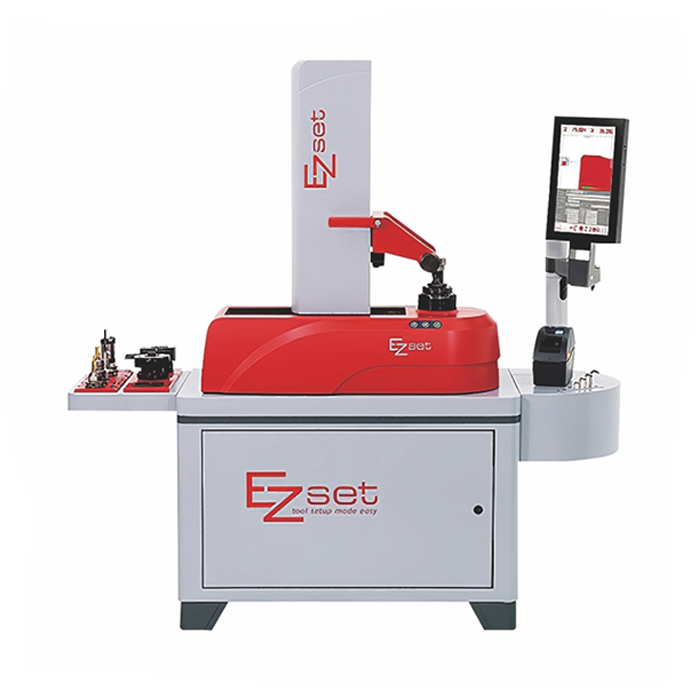

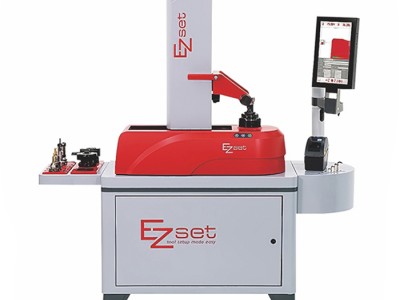

Accurate measurement
■ Image processing system with dynamic crosshairs provides high-precision non-contact tool measurement without operator intervention
■ Well-known brands such as Bosch pneumatics, THK guide rails and Heidenhain glass rulers ensure high precision and long-term maintenance-free operation
■ SK50 tool mounting spindle with high repeatability and integrated calibration cutting edge
Cost-effective
■ Integrates three functions in one: tool measurement, presetting and inspection
■ The product is delivered in a complete package, including the machine table, diameter change sleeve, tray and label printer
■ “ Made in Germany ” quality, unrivalled cost performance
■ Service network covers the world
Technical Parameters
EZ set models | Measuring range Z | Measuring range X | Card gauge |
EZ set350 | 350 mm | 320 mm | 0 mm |
EZ set420 | 420 mm | 420 mm | 100 mm |
EZ set600 | 600 mm | 420 mm | 100 mm |
EZ set600/570 | 600 mm | 570 mm | 0 mm |
EZ set tool presetting equipment adopts four image processing systems including ICbaasic, IC1, IC2 and IC3 , which are suitable for various measuring ranges | |||
