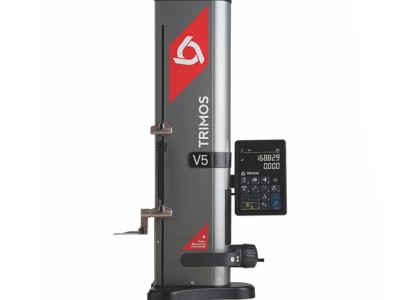

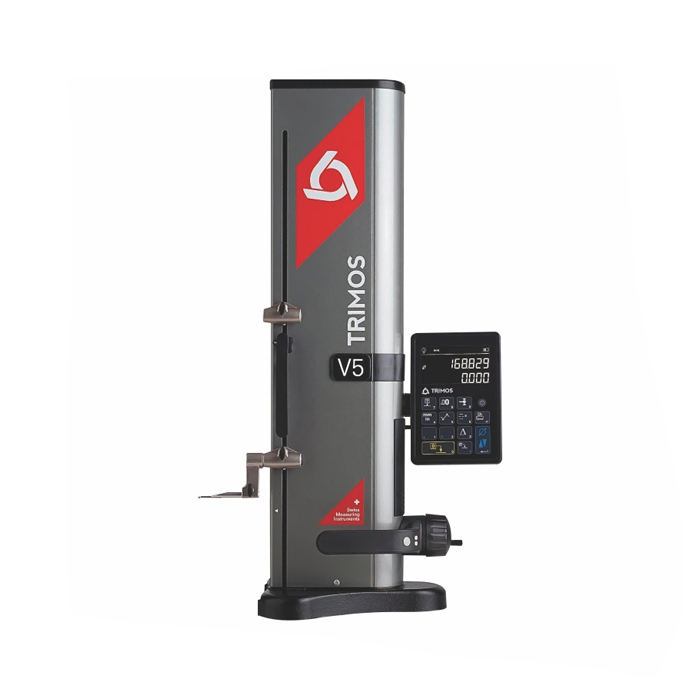

Swiss Danqing TRIMOS altimeter
Main Features
zhuanli SYLVAC measurement system ensures accurate measurement
Touch screen, large screen display of measurement results
Ergonomic design reduces operator difficulty
Low energy consumption, no radiation, produced strictly in accordance with European standards
Perfect mechanical system and balance system design
V3/V4 measurement range can be expanded
Key Features
Zero reset and value preset functions
Adjustable resolution, metric to imperial conversion function
Min / Max / Difference functions
Hole-axis center distance measurement function
Direct printing of measurement data
Can be connected to a computer for data transmission
Standard Configuration
A power adapter
A standard ruby diameter 4mm probe
A setting rule
One copy each of test report and operation manual
A cast iron base, excellent stability
B air floating button and function button
C measuring bracket moving hand wheel ( automatic and manual switchable )
D Replaceable probe & sensor fee
E- application extension probe holder
FMulti -function control and display
G measurement balance adjustment system
Technical Parameters
model | V3-400 | V3-700 | V4-400 | V4-700 |
Measuring range | 407mm | 711mm | 407mm | 711mm |
Application | 508mm | 812mm | 719mm | 1023mm |
Verticality error | 10um | 15um | 10um | 7um |
Maximum allowable error | 7um | 8um | 5um | 7um |
Repeatability | 2um | 2um | ||
Operation time | 40h | 20h | ||
Adjustable force | 0.75-1.5N | 0.75-1.5N | ||
Resolution | 0.001mm | 0.001mm | ||
Maximum movement speed | 1.5m/s | 1.5m/s | ||
Data output interface | USB/RS232 | USB/RS232 | ||
Air flotation function | none | have | ||
Ambient temperature | 10 ±40℃ | 10 ±40℃ | ||
