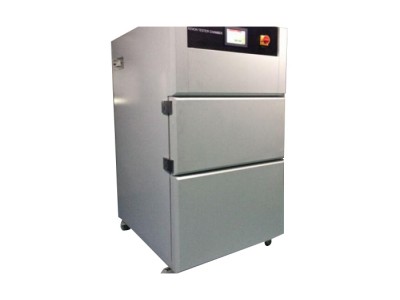

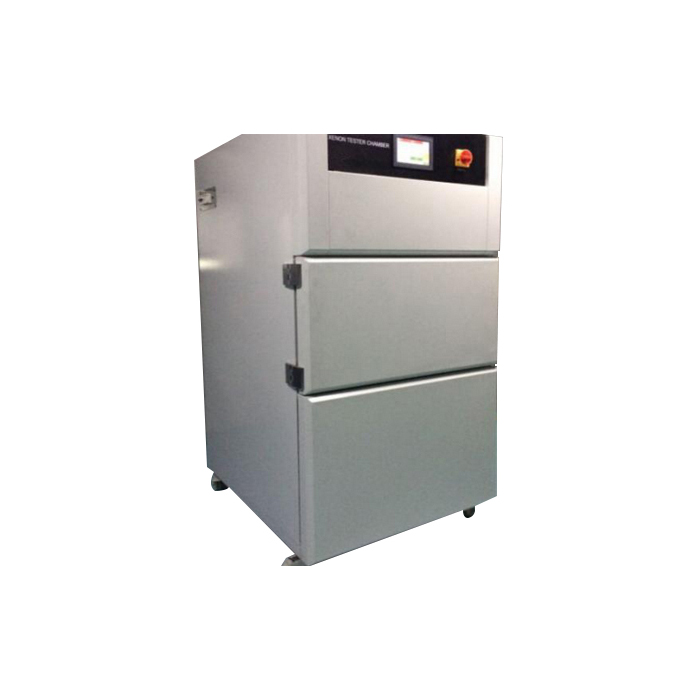

Solar Xenon Lamp Irradiation Aging Test Chamber TQ-E-3A/2A/1A
1. Meet the standards:
1.1 GB/T16422-2-1999 "Plastics laboratory light source exposure test method Part 2: Xenon arc lamp"
1.2 GB12831-1991 "Test method for aging of vulcanized rubber using artificial climate (xenon lamp)"
1.3 GB/T8430-1998 "Textiles - Tests for colour fastness - Xenon arc fading lamp - colour fastness to artificial light"
1.4 GB/T1865-2009 "Artificial weathering and artificial radiation exposure of paints and varnishes - filtered xenon arc radiation"
1.5 GB/T13448-2006 Test methods for color coated steel sheets and strips
1.6 GB/T 2423.24-1995 "Environmental testing for electric and electronic products Part 2: Test method Test Sa: Simulated solar radiation on the ground"
1.7 ASTM D3499-2011 Test Method for Toughness of Plywood
1.8 ASTM G151-2010 "Practice for Exposure of Nonmetallic Materials in Accelerated Test Apparatus Using Laboratory Light Sources"
1.9 ASTM G155-2005a "Practice for Xenon Arc Lamp Equipment for Exposure of Nonmetallic Materials"
1.10 AATCC TM169 《Weatherability of Textiles by Xenon Lamp Exposure Test》
1.11 ISO 4892-2-2009 "Plastics Laboratory Light Source Exposure Methods Part 2: Xenon Arc Lamp" and other international standards
2. Equipment performance
2.1 Light source type: 3 imported air-cooled xenon arc lamps Equipment functions: lighting, spraying, blackboard, temperature and humidity, etc. / can be customized
2.2 Wavelength range: 270-850nm Light source technology: UV420/UV340 Two freely programmable settings
2.3 Radiation intensity: 0-1200W/m2 (radiation intensity can be freely adjusted)
2.4 Filter device: 3 sets of glass window filters
2.5 Blackboard temperature range: RT+10～100 ℃
2.6 Humidity range: 20-65% (light cycle) 30-98% dark cycle
2.7 Temperature adjustment method: PID control + forced circulation air
2.8 Spraying function: high pressure water pump + special nozzle, spraying time cycle can be set
2.9 Refrigeration system: imported air conditioning compressor
2.10 Sample rack: single-layer plane
2.11 Temperature sensor: imported PT100 platinum resistance sensor
