Mechanical testing machine series

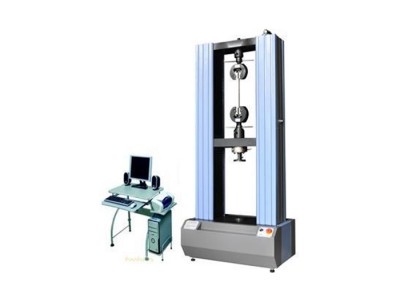

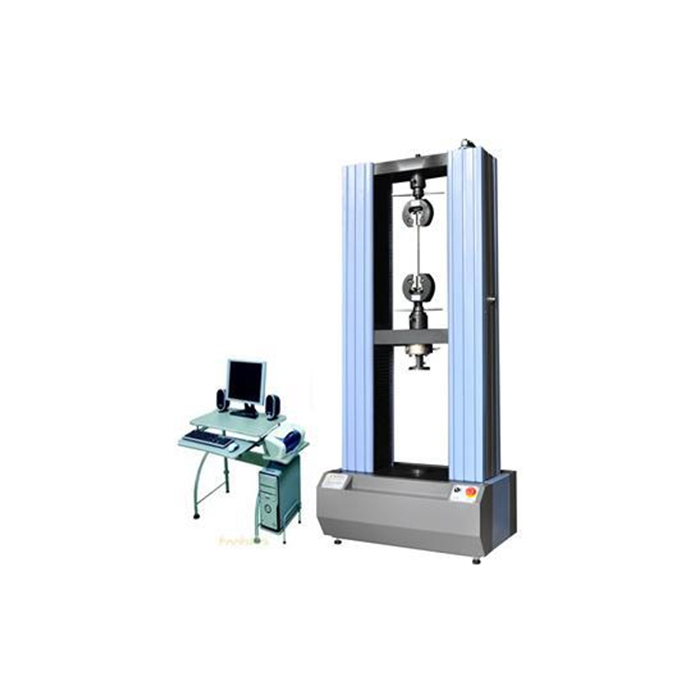

Computer servo-universal material testing machine-single column/double column
Product standards: in line with GB 8808, GB 13022, GB 1040, GB 4850, GB 7753, GB 7754, GB 453, GB/T 17200, GB/T 16578, GB/T 7122, GB/T 2790, GB/T 2791, GB/T 2792, ASTM E4, ASTM D828, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, ISO 37, JIS P8113, QB/T 2358, QB/T 1130 and other test standards, computerized universal material testing machine "GB/T16491-1996 Electronic universal testing machine" standard.
Product features:
model | Double column JT-WNCL-SZ500A-2000A/Single column JT-WNCL-DZ100B-300B |
Maximum load allowed by the machine | Double column 0-500/1000/2000kg optional / single column 0-100/200/300kg optional |
Load cell | 0.2 level input high precision force sensor |
Control System | Japan Panasonic servo drive controller |
Rotation method | Japan Panasonic servo motor |
Test speed range | 0.001～500mm/min |
Displacement indication error | Within ±0.2% of indicated value |
Computer System | Lenovo original computer + color inkjet printer set |
Test stroke (without fixture) | 1200mm/can be customized |
Automatic stop device | 1. Upper and lower limit travel protection device 2. Maximum capacity overload protection 3. Leakage protection |
volume | 560x420x1800 |
power supply | AC220V 50HZ |
