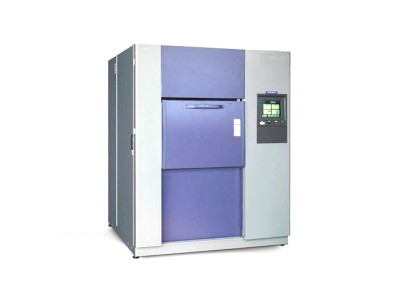

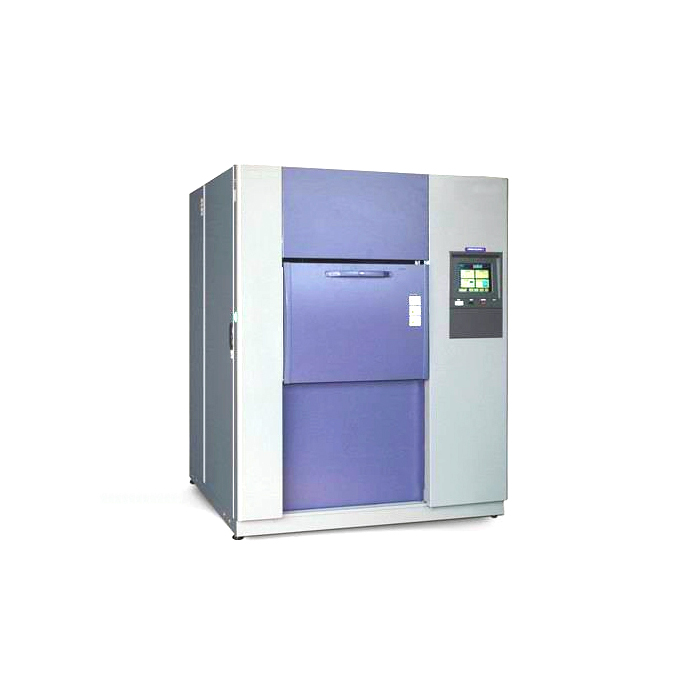

Programmable temperature thermal shock test chamber

Studio volume

50L

100L

200L

Test area

3 slots

3 slots

3 slots

High temperature box temperature range

+50℃~+150℃

+50℃~+150℃

+50℃~+150℃

Low temperature box temperature range

-70℃~-10℃

-70℃~-10℃

-70℃~-10℃

Temperature fluctuation

±0.3℃~±1.0℃

±0.3℃~±1.0℃

±0.3℃~±1.0℃

Temperature uniformity

±0.5℃~±2.0℃

±0.5℃~±2.0℃

±0.5℃~±2.0℃

Recovery time

Less than 2 minutes (measured at the air outlet)

Less than 5 minutes (measured at the air outlet)

Less than 5 minutes (measured at the air outlet)

Workshop size
(W x D x H) mm

Width 400mm

Width 500mm

Width 600mm

Depth 400mm

Depth 500mm

Depth 550mm

Height 320mm

Height 400mm

Height 600mm

Test chamber dimensions
(W x D x H) mm

Width 1320mm

Width 1420mm

Width 1520mm

Depth 2200mm

Depth 2100mm

Depth 2150mm

Height 1880mm

Height 1930mm

Height 2200mm

Test temperature range

-40℃/+150℃(Type A)
-55℃/+150℃(Type B)
-60℃/+150℃(Type C)

-40℃/+150℃(Type A)
-55℃/+150℃(Type B)
-60℃/+150℃(Type C)

-40℃/+150℃(Type A)
-55℃/+150℃(Type B)
-60℃/+150℃(Type C)

Maximum load

15 kg

30 kg

50 kg

Cooling method

                 Air-cooled/water-cooled water tower type - optional

power supply

                AC380V±10%,50HZ,3/N/PE

The international standards met are as follows

GB/T2423.22
MIL STD 202F, method 107G
IEC 60 068-2-14.Test Na
BS 2011
DIN 40046, Test Na
JESD22-A101-A
