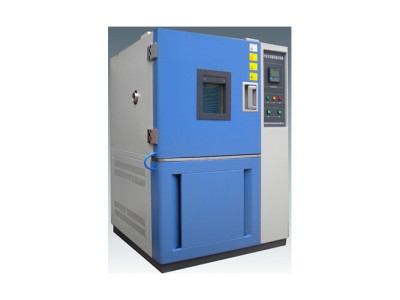

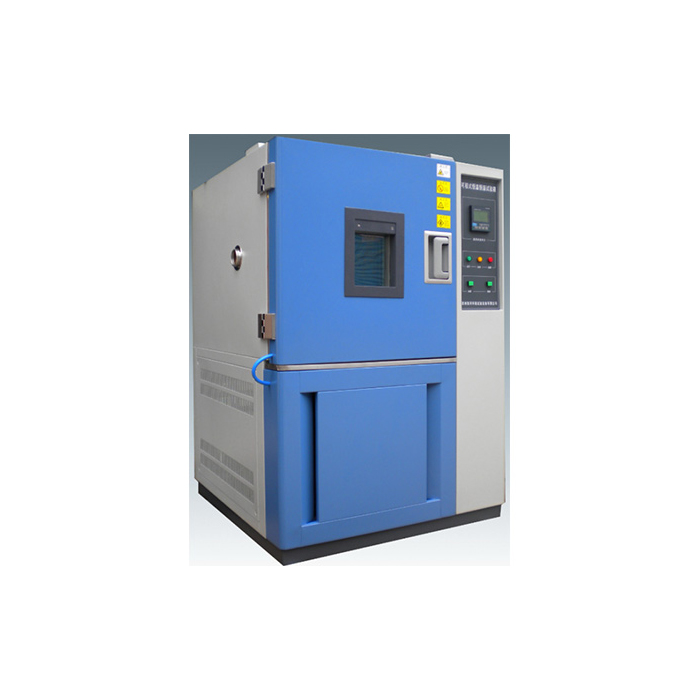

Environmental high and low temperature test chamber series

Product Model

HWX-80A

HWX-100A

HWX-150A

HWX-225A

HWX-408A

HWX-800A

HWX-1000A

Workshop size
( DWH) (cm )

40×40×50

40×50×50

50×50×60

50×60×75

60×80×85

80×100×100

100×100×100

weight

180

200

250

300

550

960

1100

performance

Temperature and humidity control method

Balanced temperature and humidity control mode PID intelligent adjustment

Temperature range

Maximum test temperature : +150℃ ; minimum test temperature -20/-40/-60/-70℃ / non-standard customization is available

Humidity range

30% ～ 98% R·H

Temperature uniformity

±2℃

Temperature fluctuation

±0.5℃

Humidity uniformity

±3%R·H

Heating rate

≥2℃/min

Cooling rate

≥1 ～ 1.5℃/min

Material

Inner box material

SUS304 mirror stainless steel

Housing Material

SUS304 brushed stainless steel plate or rust-proof cold-rolled steel plate

Insulation

Polyurethane foam plastic composite assembly board

Control System

Heater

Nickel-chromium alloy electric heater

humidifier

Stainless steel armored humidifier

Air intake system

Centrifugal fans

Refrigeration method

Mechanical single-stage refrigeration

Cooling method

Air Cooling

Refrigeration compressor

Original imported fully enclosed compressor (Taikang, France)

Refrigeration heat exchanger

Finned heat exchanger, stainless steel brazed plate heat exchanger

User Interface

Imported single point controller

Operation mode

Constant operation

Program memory capacity

Can memorize the last set operating temperature and humidity values

Resolution

Temperature: 0.01℃ ; Humidity: 0.1%R·H

enter

PT100 or T- type thermocouple

Communication function

none

Printing function

Japan Yokogawa 6-point recorder (optional)

Standard Configuration

One observation window; one test hole (60mm); two layers of sample racks; one lighting lamp in the box; one water supply tank; one wet-bulb weather belt; four footrests.

Safety devices

Over-temperature protection, dry burning protection (humidification system), water shortage protection, leakage protection, compressor overpressure, overload, overcurrent protection, fan overload protection, phase sequence protection.

Additional functions

Upper and lower limit alarm, self-diagnosis, alarm display (fault cause), timing device (automatic shutdown)
