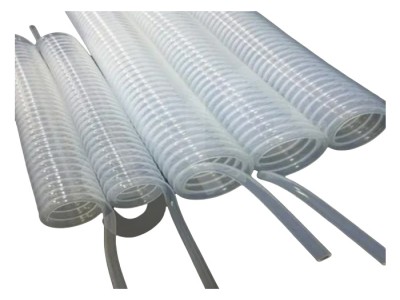

SYQ- FEP/PFA/PTFE spiral tube
Made of DuPont/Daikin ultra-high purity new generation fluoroplastic material, it is suitable for working environments with high purity requirements.
Features: Operating temperature: -800 degrees to 260 degrees, easy processing: can be flanging, welding, aging resistance: can be exposed to ozone and sunlight for a long time without aging. High transparency: the lowest refractive index among all plastics, you can see the flow of the medium in the cleaning pipe very intuitively, corrosion resistance: can withstand all strong acids, strong oxidants, strong reducing agents and various organic solvents except molten alkali metals, fluorinated media and temperatures above 300°.
Application: hydrochloric acid, nitric acid, hydrogen peroxide and other chemical fluids with ultra-high purity and corrosion resistance requirements, heat exchangers, steam piping, semiconductors, photovoltaics, liquid crystal wet manufacturing, electronic chemical industry and other industries.
Specifications:

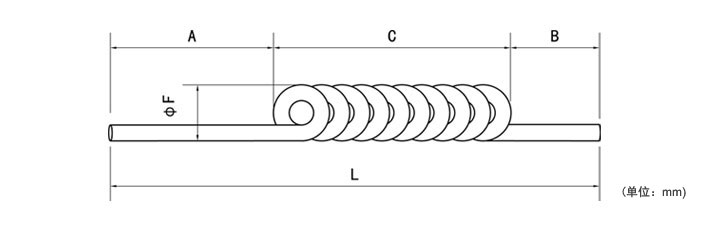

model | Hose specifications (Inner diameter x outer diameter Φmm) | Scope of use | Weight(g) | ΦF | A | C | B | L | color |
SYQ-4 | 4*6.35 OD1/4 | 1.5m | 200 | 42 | 120 | 300 | 120 | 540 | transparent |
SYQ-4*6 | 4*6 OD6mm | 1.5m | 185 | 40 | 120 | 295 | 120 | 530 | transparent |
SYQ-4-9 | 4*6.35 OD1/4 | 2.5m | 350 | 42 | 120 | 500 | 120 | 700 | transparent |
SYQ-6 | 6.35×9.52 OD3/8 | 1.5m | 520 | 65 | 120 | 500 | 100 | 580 | transparent |
SYQ-6-9 | 6.35×9.52 OD3/8 | 2.5m | 720 | 65 | 120 | 500 | 100 | 720 | transparent |
※ PFA spring tube specifications can be customized. It can also be customized into double-row or multi-row spring air tubes with various color combinations; the same tube diameter and different tube diameters can be combined and processed.
※ The above description information only represents the characteristics of PFA materials. The high-temperature material used in production is determined by the customer. If necessary, please inquire and confirm the product situation in advance. Please be aware.
