Color flame retardant corrugated tube
SYQ-PP(polypropylene) corrugated pipe
Material: Polypropylene PP
Product structure: Both the inside and outside are wavy

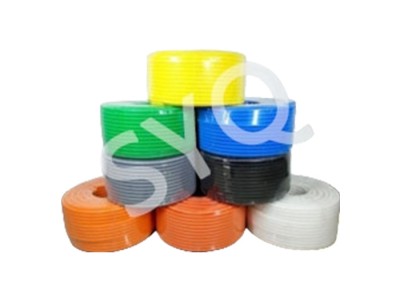

Color: black, orange, gray, white, red, blue, yellow, etc. (colors can be customized and can be opened as needed)
Temperature: -40℃~110℃ Short-term 130℃ (+130℃ 240h)
Protection level: IP68
Flame retardant grade: UL94-V2
Burning speed <100mm/min
Features: oil resistance, acid and alkali resistance, strong corrosion resistance, high mechanical strength, good flexibility, surface gloss, free of halogen, phosphorus, cadmium, passed RoHS test
Applications: Special for new energy vehicle wiring harness protection, machine manufacturing, chemical equipment, to protect cables and wires from external wear and insulation.
How to use: Insert the wires and cables into the tube and use it with the corresponding model of the series hose connector.
SYQ-PP (polypropylene) corrugated pipe specifications:
Closed pipe model Close tu ding | Split tube model Split tu bing | Inner diameter x outer diameter ID x OD (mm) | Bending radius (mm) Curving radius | Packing quantity Units | |
SYQ-7.0 | SYQ-7.0B | 4.5 to 7.0 | 10 | 200 | |
SYQ-9.0 | SYQ-9.0B | 6.0 to 9.0 | 15 | 200 | |
SYQ-10.0 | SYQ-10.0B | 6.5 x 10.0 | 15 | 100 | |
SYQ-11.6 | SYQ-11.6B | 8.6 to 11.6 | 20 | 100 | |
SYQ-13.0 | SYQ-13.0B | 10.0 to 13.0 | 20 | 100 | |
SYQ-14.0 | SYQ-14.0B | 11.0 to 14.0 | 25 | 100 | |
SYQ-15.8 | SYQ-15.8B | 12.0 to 15.8 | 28 | 100 | |
SYQ-18.5 | SYQ-18.5B | 14.3ⅹ18.5 | 35 | 100 | |
SYQ-20.0 | SYQ-20.0B | 16.0ⅹ20.0 | 38 | 100 | |
SYQ-21.2 | SYQ-21.2B | 17.0ⅹ21.2 | 40 | 100 | |
SYQ-25.0 | SYQ-25.0B | 20.0 x 25.0 | 42 | 100 | |
SYQ-28.5 | SYQ-28.5B | 23.0 x 28.5 | 45 | 100 | |
SYQ-30.0 | SYQ-30.0B | 24.0 x 30.0 | 50 | 100 | |
SYQ-32.0 | SYQ-32.0B | 25.0 x 32.0 | 50 | 50 | |
SYQ-34.5 | SYQ-34.5B | 29.0 x 34.5 | 55 | 50 | |
SYQ-42.5 | SYQ-42.5B | 36.0 x 42.5 | 70 | 25 | |
SYQ-54.5 | SYQ-54.5B | 48.0 x 54.5 | 80 | 25 | |
SYQ-67.2 | SYQ-67.2B | 56.3X67.2 | 130 | 20 | |
SYQ-80.0 | SYQ-80.0B | 66.5X80.0 | 170 | 20 | |
SYQ-106.0 | SYQ-106B | 91.0X106 | 225 | 10 |
▲Corrugated pipes are divided into open and closed types.
▲If there are special requirements for pipe color, length and packaging, it can be agreed upon by both the supplier and the buyer.
▲The company reserves the right to change the inner and outer diameters and structural dimensions.
