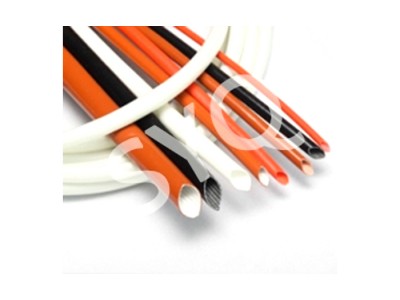

Fiber sleeve (rubber inside and fiber outside)
Key indicators
Rated voltage: 4.0KV to7.0KV
Rated temperature: 200℃
Standard: UL 1441
●Application range
Applicable to various lighting, household appliances, medical equipment and beverages, etc.
model Type | Test conditions Test Condition | Flame resistance Lighting- resistance | Temperature resistance Temperature-resistance | Average voltage Average voltage | Individual Values Individual Value |
FRS-40 | UL1441 | UL VW-1 | +200℃ | 4000V | 3000V |
FRS-70 | UL1441 | UL VW-1 | +200℃ | 7000V | 5000V |
Performance parameters:
ITEM | Performance indicator VALUE |
Continuous Operating Temperature | -60℃+200℃ |
Temperature | 200℃±2℃ 168?1/2 original voltage value |
Thermal | 260℃, 6 hours, no cracks |
| No cracks |
Horizontal Flame | ＜30 sec |
Flame Retardance | ＜30 sec |
Submerge Water | No stickiness, no deformation, no softening |
Inner diameter:
Inside diameter | Wall thickness | ||
Nominal | Tolerance | 4000V | 7000V |
0.5~2.0mm | +0.20-0.00mm | 0.40±0.05mm | 0.45±0.05mm |
2.5~3.0mm | +0.25-0.00mm | 0.40±0.05mm | 0.50±0.05mm |
3.5~5.0mm | +0.35-0.00mm | 0.45±0.05mm | 0.55±0.05mm |
6.0~9.0mm | +0.50-0.00mm | 0.50±0.05mm | 0.60±0.05mm |
10.0~12.0mm | +0.70-0.00mm | 0.60±0.05mm | 0.65±0.05mm |
