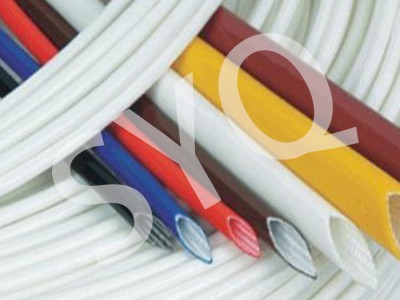

SYQ- Fiber Sleeve
Product model: SYQ-fiber casing
Material: Silicone glass fiber sleeve is made of alkali-free glass fiber yarn woven into a tube and then coated with silicone resin and treated at high temperature.
Working temperature: –10-+200℃
Withstand voltage level: 1E: 4KV-7KV2E: 2.0KV-2.5KV 3E: 1.3KV-1.5KV, 4E: 1.2KV
Flame resistance: UL VW-1 Self-extinguishing time: 10 seconds Volume resistance: 10Ω
Features: Anti-electricity, self-extinguishing, soft
Application: Used for insulation protection in high temperature places such as motors, household appliances, electronic products, lighting, electric heating equipment, special lamps, etc.
SYQ-fiber casing specifications:
Specifications (mm) | Wall thickness(mm) | ||
Inner diameter | tolerance | Level 1E | 2E3E4E Level |
0.5-2.5 | 0.20±0.05 | 0.38±0.05 | 0.20±0.05 |
3.0-4.0 | 0.25±0.05 | 0.46±0.05 | 0.25±0.05 |
5.0-6.0 | 0.35±0.05 | 0.50±0.05 | 0.30±0.05 |
7.0-9.0 | 0.50±0.05 | 0.54±0.05 | 0.35±0.05 |
10.0-14.0 | 0.70±0.05 | 0.64±0.05 | 0.45±0.08 |
15.0-40.0 | 0.80±0.05 | 0.64±0.05 | 0.50±0.10 |
Standard colors: white, red, black, yellow, blue, green | |||
