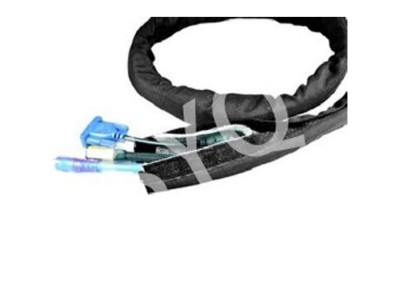

SYQ-Velcro Shielding Sleeve
SYQ-Velcro shielding sleeve is made of tinned copper hook mesh, flame retardant cloth and Velcro. This product has the functions of shielding highly sensitive electromagnetic interference, noise reduction, dust prevention and leakage protection.
The products are widely used in rail vehicles, high-speed railways, automobiles, aerospace, communications, industrial machinery, medical equipment, electronic appliances, etc.
Material: Polyester Flame retardant grade: VW-1 Standard color: Black
Cutting tool: hot cutter Certification: RoHS, halogen-free
Working temperature: -50℃-+150℃ Melting point: 240±10℃
SYQ- Velcro shielding sleeve specification table:
Dimensions | |||
model | Inner diameter (I) | Expanded width (W) | Packaging (L) |
PVTW-20 | 20 | 80 | 25m/roll |
PVTW-25 | 25 | 95 | |
PVTW-30 | 30 | 115 | |
PVTW-35 | 35 | 130 | |
PVTW-40 | 40 | 146 | 25m/roll |
PVTW-45 | 45 | 162 | |
PVTW-50 | 50 | 178 | |
Unit: mm
Notes:
1. The inner diameter refers to the round diameter of the casing, not the folded diameter.
2. Special packaging, special colors, etc. can be customized according to customer needs.
3. Please refer to the sample approval letter for detailed product parameters.
