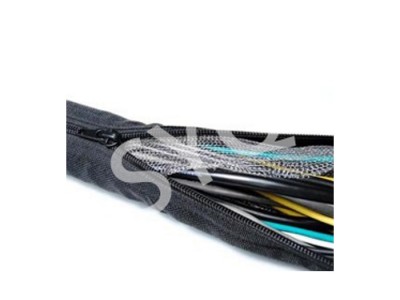

SYQ- Self-rolling textile sleeve
SYQ-Self-winding Textile Sleeve SCS is made of polyester monofilament and multifilament. It has the characteristics of fire resistance, wear resistance, softness, dust resistance, simple and quick operation, etc. The open structure is conducive to protecting the modification, reinstallation, maintenance and repair of the internal wiring harness.
Product application: The products are widely used in wires, cables, flat harnesses and hoses for high-speed railways, automobiles, automation equipment and instruments, and are especially suitable for the field of irregular-shaped harnesses.
Material: Polyester monofilament, polyester multifilament Flame retardant grade: UL94 V2 Standard color: black
Cutting tools: scissors or hot cutter Certification: ROHS, halogen-free certification
Working temperature: -50℃-+150℃ Melting point: 240±10℃
SYQ-Self-rolling Textile Sleeve Specifications:
Dimensions | |||
model | Inner diameter (d) | Maximum harness diameter | Packaging (L) |
SYQ-005 | 5.0 | 6.0 | 100m/roll |
SYQ-008 | 8.0 | 9.0 | 100m/roll |
SYQ-010 | 10.0 | 11.0 | 100m/roll |
SYQ-013 | 13.0 | 14.0 | 50m/roll |
SYQ-016 | 16.0 | 17.0 | 25m/roll |
SYQ-019 | 19.0 | 20.0 | 25m/roll |
SYQ-025 | 25.0 | 27.0 | 25m/roll |
SYQ-029 | 29.0 | 31.0 | 25m/roll |
SYQ-032 | 32.0 | 34.0 | 25m/roll |
SYQ-038 | 38.0 | 40.0 | 25m/roll |
SYQ-050 | 50.0 | 52.0 | 25m/roll |
Unit: mm
Notes:
1. The inner diameter refers to the round diameter of the casing, not the folded diameter.
2. Special packaging, special colors, etc. can be customized according to customer needs.
3. Please refer to the sample approval letter for detailed product parameters.
