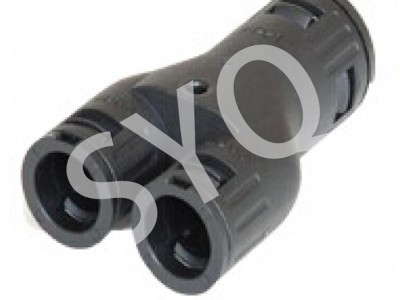

SYQ-Hose T, Y-type tee
Product material: TPE rubber raw material
Working temperature: -40℃~+120℃, up to 150℃ for a short time
Protection level: IP65
Product color: Black. Cable protection special connector
SYQ-Hose T-type three-way specification table:
model | Adaptable hose size | Ф11mm | Ф12mm | Ф13mm | ФB1mm | ФB2 mm | ФB3mm | D mm | E mm | C mm | F mm |
SYQ-T-3*10.0 | 3*10.0 | 7.0 | 7.0 | 7.0 | 17.5 | 17.5 | 17.5 | 46.5 | 32.5 | 18.3 | 4 |
SYQ-T-3*13.0 | 3*13.0 | 10.0 | 10.0 | 10.0 | 21.0 | 21.0 | 21.0 | 51.0 | 36.0 | 21.0 | 4 |
SYQ-T-3*15.8 | 3*15.8 | 14.0 | 14.0 | 14.0 | 25.0 | 25.0 | 25.0 | 63.0 | 44.0 | 24.5 | 4 |
SYQ-T-3*18.5 | 3*18.5 | 15.0 | 15.0 | 15.0 | 26.5 | 26.5 | 26.5 | 70.5 | 48.5 | 24.3 | 4 |
SYQ-T-3*21.2 | 3*21.2 | 18.0 | 18.0 | 18.0 | 29.5 | 29.5 | 29.5 | 71.5 | 50.0 | 29.5 | 4 |
SYQ-T-2*21.2/1*28.5 | 2*21.2/1*28.5 | 18.0 | 25.5 | 18.0 | 32.0 | 36.5 | 32.0 | 78.0 | 51.0 | 38.5 | 4 |
SYQ-T-2*28.5/1*15.8 | 2*28.5/1*15.8 | 25.5 | 14.0 | 25.5 | 36.5 | 25.5 | 36.5 | 65.0 | 56.0 | 24.5 | 4 |
SYQ-T-3*28.5 | 3*28.5 | 25.5 | 25.5 | 25.5 | 36.5 | 36.5 | 36.5 | 77.0 | 57.5 | 37.0 | 4 |
SYQ-T-2*28.5/1*34.5 | 2*28.5/1*34.5 | 25.5 | 31.5 | 25.5 | 36.5 | 42.5 | 36.5 | 83.5 | 57.5 | 42.0 | 4 |
SYQ-T-3*34.5 | 3*34.5 | 31.5 | 31.5 | 31.5 | 42.5 | 42.5 | 42.5 | 85.0 | 64.0 | 42.0 | 4 |
SYQ-T-3*42.5 | 3*42.5 | 39.7 | 39.7 | 39.7 | 52.5 | 52.5 | 52.5 | 96.0 | 74.5 | 52.8 | 4 |

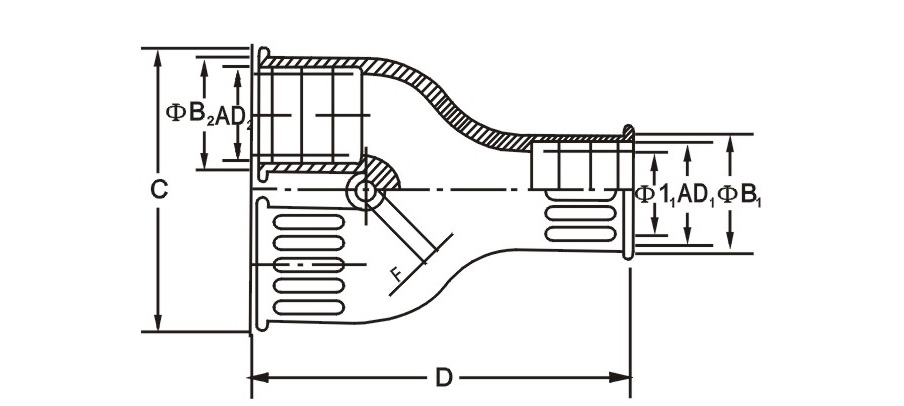

SYQ-Hose Y-type tee specification table:
model | Adaptable hose size | Ф11mm | Ф12mm | ФB1mm | ФB2mm | D mm | C mm |
SYQ-Y-3*10 | 3*10 | 9.5 | 9.5 | 17.5 | 17.5 | 54.5 | 36.5 |
SYQ-Y-2*10.0/1*13.0 | 2*10.0/1*13.0 | 10.0 | 7.0 | 20.0 | 17.0 | 63.0 | 36.0 |
SYQ-Y-3*13.0 | 3*13.0 | 10.0 | 10.0 | 20.0 | 20.0 | 65.0 | 43.0 |
SYQ-Y-2*13.0/1*15.8 | 2*13.0/1*15.8 | 12.5 | 10.0 | 23.0 | 20.0 | 66.0 | 45.0 |
SYQ-Y-3*15.8 | 3*15.8 | 12.5 | 12.5 | 23.0 | 23.0 | 68.0 | 46.0 |
SYQ-Y-2*15.8/1*21.2 | 2*15.8/1*21.2 | 18.0 | 14.0 | 29.5 | 25.0 | 75.0 | 52.0 |
SYQ-Y-2*15.8/1*28.5 | 2*15.8/1*28.5 | 25.5 | 14.0 | 36.5 | 25.0 | 75.0 | 52.0 |
SYQ-Y-3*18.5 | 3*18.5 | 15.0 | 15.0 | 26.5 | 26.5 | 81.0 | 54.5 |
SYQ-Y-2*21.2/1*28.5 | 2*21.2/1*28.5 | 25.5 | 18.0 | 36.5 | 29.5 | 68.0 | 60.5 |
SYQ -Y-2*28.5/1*34.5 | 2*28.5/1*34.5 | 31.5 | 25.5 | 42.5 | 36.5 | 86.0 | 77.0 |
SYQ -Y-2*34.5/1*42.5 | 2*34.5/1*42.5 | 39.7 | 31.5 | 52.5 | 42.5 | 98.5 | 89.0 |
SYQ -Y-2*42.5/1*54.5 | 2*42.5/1*54.5 | 52.0 | 39.7 | 65.0 | 52.5 | 116.0 | 109.5 |
SYQ-Y-321.2 | 321.2 | 18.0 | 18.0 | 29.5 | 29.5 | 82.5 | 62.5 |
