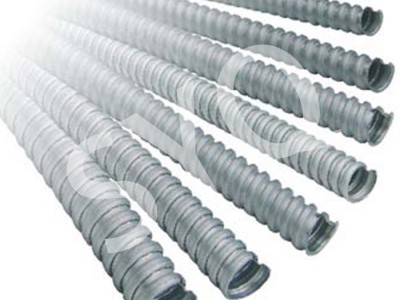

SYQ- Metal Corrugated Hose
Product material: 1. Galvanized steel strip, 2. 201 stainless steel. Made of national standard thickness.
Product certification: European environmental protection SGS: SH6134468/CHEM
Product Features: Galvanized metal hose, 201 stainless steel metal hose, lighter than other products , super soft and excellent bending performance, smooth internal structure makes it very easy to thread wires.
Application areas: Wiring protection in machinery, buildings, distribution cabinets, factories and other buildings, protecting wires and cables and achieving insulation, and improving the beauty of cable bending.
Product use: To protect wires and cables and achieve wear resistance.
How to use: First insert the wires and cables into the pipe, and then connect the corresponding connector J model.
SYQ-Metal Corrugated Hose Specifications:
Nominal inner diameter | Imperial Sizes | Inner diameter(mm) | Outer diameter(mm) | Packaging (m) |
SYQ-Ф6.0 | 3/16" | 6.0-6.25 | 8.2-8.5 | 100 |
SYQ-Ф8.0 | 1/4'' | 8.0-8.30 | 11.0-11.3 | 100 |
SYQ-Ф10 | 5/16'' | 10.0-10.30 | 13.5-13.8 | 100 |
SYQ-Ф12 | - | 12.3-12.6 | 15.5-15.8 | 100 |
SYQ-Ф13 | 3/8'' | 13.3-13.6 | 16.5-16.8 | 100 |
SYQ-Ф15 | - | 15.3-15.6 | 19.0-19.5 | 100 |
SYQ-Ф16 | 1/2'' | 16.0-16.5 | 20.0-20.5 | 100 |
SYQ-Ф19 | -'' | 19.0-19.3 | 23.3-23.6 | 50 |
SYQ-Ф20 | 3/4'' | 20.0-20.3 | 24.3-24.6 | 50 |
SYQ-JФ25 | 1'' | 25.0-25.5 | 30.3-30.8 | 50 |
SYQ-Ф32 | 1-1/4'' | 32.3-32.8 | 38.0-38.5 | 25 |
SYQ-Ф38 | 1-1/2'' | 38.0-38.8 | 45.0-48.0 | 25 |
SYQ-Ф51 | 2'' | 50.0-51.5 | 58.0-59.0 | 20 |
SYQ-Ф64 | 2-1/2'' | 63.0-64.2 | 72.5-73.0 | 10 |
SYQ-Ф75 | 3'' | 73.0-76.5 | 83.5-85.5 | 10 |
SYQ-Ф100 | 4'' | 98.5-101.5 | 108.5-110.5 | 10 |
*Hose specifications, sizes and colors can be customized
