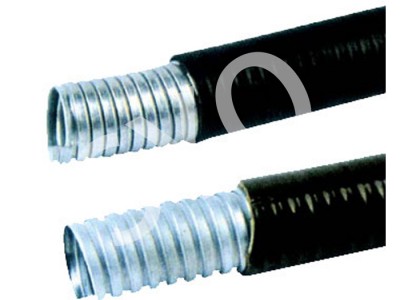

SYQ- Flat plastic coated corrugated hose
Product material: (Inner layer) galvanized steel strip with special insulation treatment; (Outer layer) PVC raw material (anti-ultraviolet and anti-aging)
Product color: Black
Working temperature: -10℃ ~ +80℃ (can reach +100℃ for a short time.)
Product certification: European environmental protection SGS: SH6134468/CHEM
Product features: The hose has excellent waterproof, insulation and tensile resistance. Increased tensile strength, not easy to break or deform. Good bending performance, thickened PVC surface, smooth appearance, and fire retardant added to PVC plastic. Smooth internal structure, easy to thread wires and cables.
Application areas: Railways, locomotives, transportation system engineering, air conditioning, various machinery, automatic control equipment, power plants, chemical industry, power transmission and distribution systems, communication systems, ships, buildings, wiring protection inside and outside factories and exposed parts.
Product use: To protect wires and cables and to achieve insulation and waterproofing.
How to use: First insert the wires and cables into the pipe, and then connect the corresponding connector P model.
SYQ-P flat plastic coated corrugated hose specifications:
Nominal inner diameter | Imperial Sizes | Inner diameter(mm) | Outer diameter(mm) | Packaging (m) |
SYQ-Ф10 | 5/16'' | 9.70-10.0 | 14.0-14.3 | 100 |
SYQ-Ф12 | - | 12.3-12.6 | 16.5-16.8 | 100 |
SYQ-Ф13 | 3/8'' | 13.3-13.6 | 17.5-17.8 | 100 |
SYQ-Ф15 | - | 15.3-15.6 | 20.5-20.8 | 100 |
SYQ-Ф16 | 1/2'' | 15.7-16.0 | 20.5-20.8 | 100 |
SYQ-Ф19 | -'' | 18.7-19.7 | 24.3-24.6 | 50 |
SYQ-Ф20 | 3/4'' | 19.7-20.0 | 25.3-25.6 | 50 |
SYQ-Ф25 | 1'' | 25.3-25.8 | 30.7-31.2 | 50 |
SYQ-Ф32 | 1-1/4'' | 32.3-32.8 | 38.5-39.0 | 25 |
SYQ-Ф38 | 1-1/2'' | 38.3-38.8 | 45.7-46.2 | 25 |
SYQ-Ф51 | 2'' | 50.0-50.5 | 58.8-59.3 | 20 |
SYQ-Ф64 | 2-1/2'' | 62.5-63.2 | 73.5-74.0 | 10 |
SYQ-Ф75 | 3'' | 73.0-73.7 | 84.5-85.2 | 10 |
SYQ-Ф100 | 4'' | 97.5-98.5 | 109.5-110.5 | 10 |
*Hose specifications, sizes and colors can be customized
