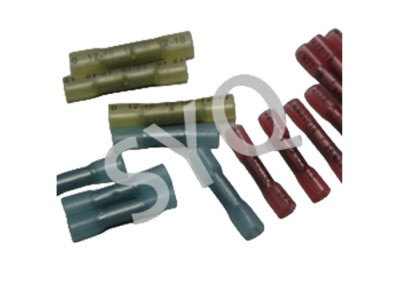

SYQ- Heat shrink crimp waterproof middle pipe
Material structure: The heat shrink waterproof crimping sleeve is composed of tinned copper terminals and double-wall heat shrink sleeves . The crimping terminals provide wire edge protection, and the double-wall heat shrink sleeves provide sealing and waterproof protection for the wires. The double-wall heat shrink sleeves are made of polyethylene as raw material and have a layer of hot melt adhesive inside. After heating and shrinking, they have excellent sealing, waterproofing and insulation effects on the protected wire connections.
Application: Widely used in waterproofing of wire connections, automotive wiring harness processing, ship mooring harness, submersible pump anvil motor wires, lighting wires, intermediate connections for wires and cables, easy to install.
SYQ-heat shrinkable waterproof middle pipe specification table:
serial number | Wire size |
color | ||
AWG | Single core(mm2) | Multi-strand (mm2) | ||
SYQ-1 | 22-18 | 0.57-1.44 | 0.25-1.65 | red |
SYQ-2 | 16-14 | 1.44-1.82 | 1.04-2.63 | blue |
SYQ-3 | 12-10 | 1.82-2.83 | 2.63-6.64 | yellow |
Technical parameters:
project | Typical data |
Operating temperature range | -55℃--105℃ |
Cut-through strength | 70 1b |
Heat aging | 168 hours, no cracking after 160℃ |
Dielectric strength | 3.4KV |
Insulation resistance | 10 megohm |
