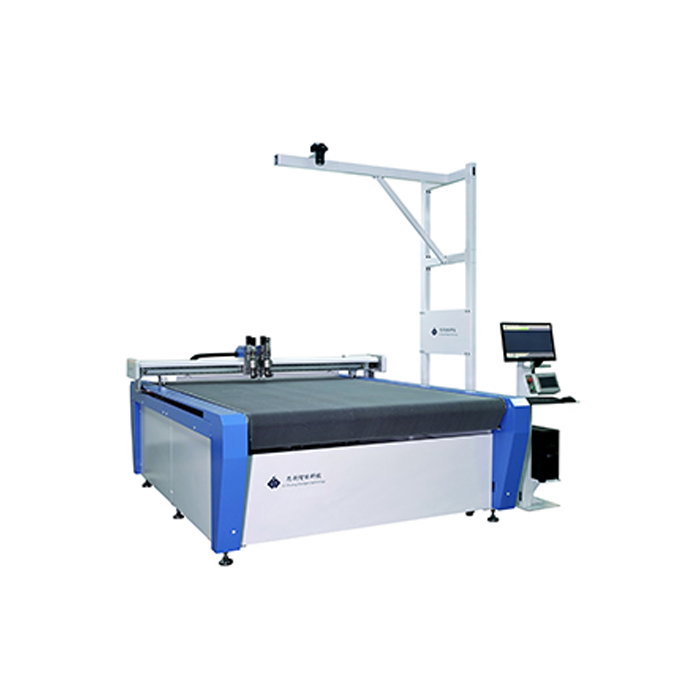

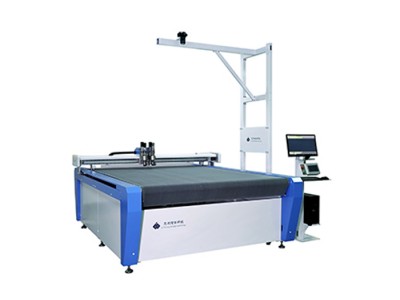

Product name: SC digital printing cutting machine
1. Product Overview:
The SiChuang digital printing cutting machine is mainly used for edge cutting of digital printing. It uses a professional visual edge cutting system and an intelligent cutting system to cut the pattern edge. Single-head and double-head asynchronous can be selected as needed. It can quickly complete the edge cutting of digital printing and solve the problem of digital printing cutting! It can also be used in industries such as advertising, seals, leather shoes, composite materials, automotive interiors, clothing, carpets and mats. According to different cutting materials, different cutters can be flexibly configured to achieve the characteristics of one machine for multiple uses.
Compared with traditional laser cutting, the SiChuang digital printing cutting machine has the characteristics of precise cutting, smooth edges, no sawtooth, no yellowing and burning, no powder, dust, odor, more environmentally friendly, easy maintenance, and low cost. It greatly shortens the development cycle of user styles and solves the problem of difficult production and processing of small batch orders. Users can also freely choose multiple heads, double beams, lengthened and widened cutting bed working area, etc. to meet different personalized production needs. It is suitable for various small orders and small batch production, for cloth cutting, clothing proofing, sofa fabrics, etc.
●Suitable for various small orders and small batch production, for fabric cutting, clothing proofing, sofa fabrics, etc.
● Tailor-made cutting solutions for enterprises. It can realize fast typesetting and cutting, saving time, labor and materials.
2. Hardware features:
Fast - The cutting speed of the SiChuang digital printing cutting machine is 4-6 times that of traditional manual cutting, which enables fast unloading, fast discharging and fast production, especially for customers with small order quantities, many styles and short delivery time.
Accurate - SiChuang digital printing and cutting machine adopts computer control, the sample distance can be accurate to 0.1-1mm, and continuous cutting can avoid the damage to materials and pollution to the environment caused by laser cutting. The material output is more accurate to ensure product quality.
Save - SiChuang digital printing and cutting machine has high cutting speed and high efficiency, which can save considerable labor costs throughout the year.
3. Product advantages
1. Use high-speed circular knife to cut through visual edge positioning, which can be quickly positioned and cut.
2. Multi-head and multi-beam design can realize multi-head cutting at the same time, which can double the cutting efficiency.
3. Cold cutting by cutting tools. It avoids the damage to the edge of the material caused by laser cutting, and the harm to the human body caused by smoke, odor, etc., and completely achieves green and environmentally friendly processing.
4. Technical parameters of SiChuang digital printing and cutting machine
model | SC-1825 | SC-1816 | SC-1830 | SC-2230 |
Effective cutting size | Width 1800mm Length 2500mm | Width 1800mm Length 1600mm | Width 1800mm Length 3000mm | Width 2200mm Length 3000mm |
Work surface | Automatic feeding platform | |||
Machine weight | 1000KG | 800KG | 1100KG | 1200KG |
Standard | 1.Circular cutter , 2.Red cross positioning light | |||
Optional tools | 1. Single cutting head type, 2. Double head asynchronous type, 3. Double beam type, 4. Brush, 5. Visual positioning, 6. Punching, | |||
Technical parameters: | ||||
Working characteristics | Adopt independent motion controller, computer operation and cutting operation are carried out simultaneously. The current position can be saved after power failure, and the unfinished cutting task can be continued after power failure. | |||
Human Machine Interface | 7-inch resistive touch screen | |||
Cutting speed (1) | 1mm/s ～ 1800mm/s | |||
Cutting thickness (1) | 0.1mm ～ 20mm (customizable) | |||
Cutting Materials | Digital printing, clothing fabrics, sofa fabrics, carpets, and other materials. | |||
Cutting accuracy | 1000mm error is ±0.3mm | |||
Repeat cutting accuracy | ≤0.2mm | |||
Z Small cutting circle diameter | ≥3mm (related to material and cutter head) | |||
Control System | 4-8 axis independent motion controller + multi-threaded real-time embedded control system | |||
Drive system | Digital servo motor | |||
Transmission mode | Belt drive (optional rack drive), linear guide, ball screw | |||
Drag chain cable | High flexible drag chain cable | |||
Electrical components | MEANWELL/AirTAC/DELIXI, etc. | |||
Machine material | Alloy aluminum vacuum adsorption platform | |||
Cutting Panels | Highly breathable fiber panel⑵ | |||
Adsorption fan | AC 380V±10% 50/60±1Hz Power: MAX_7.5KW-9KW | |||
Command system | HP-GL compatible formats | |||
Compatible software formats | AI, Autocad, Coraldraw, ArtiosCAD, CimPack, ImpactCAD, DraftSight CAD, etc. | |||
Transmission interface | RJ45 network port, capable of one-to-many and many-to-one communication | |||
Working voltage/frequency | AC 220V±10% 50/60±1Hz Power: MAX_1.5KW (Requires 10A socket, national standard 1.5 mm² wire) | |||
5. Application of SiChuang digital printing and cutting machine:
