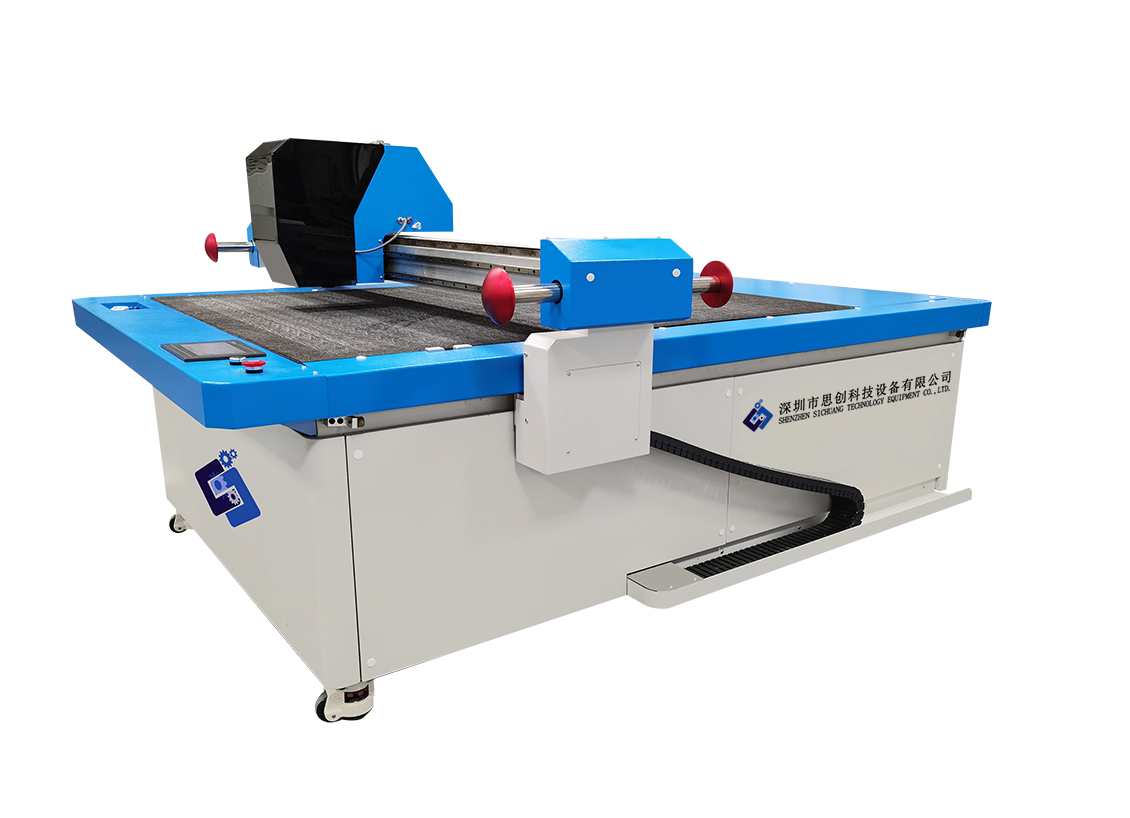

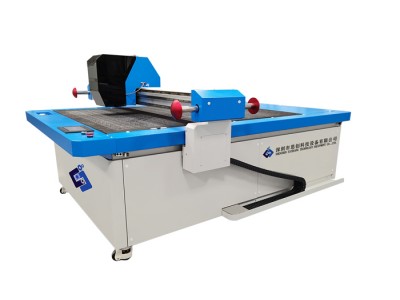

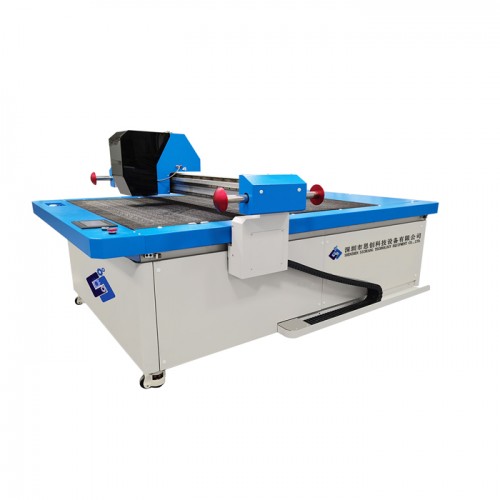

Product Name: Packaging Material Cutting Machine
● Suitable for tailor-made cutting solutions for packaging, advertising and other companies.
● Widely used, can be used for honeycomb paperboard, composite paperboard, cardboard, tube paper, packaging paperboard, gray board, gray cardboard, color printing paper, etc. Packaging cutting machine
【Widely used in packaging and advertising industries such as cartons, color boxes, gift boxes, etc.】
Fast - Sichuang packaging material cutting machine has fast cutting speed and fast production, which is especially advantageous for customers with small order quantity, many styles and short delivery time.
Accurate - Sichuang packaging material cutting machine adopts independent motion controller, the sample distance can be accurate to 0.1-0.2mm, and continuous cutting is possible without making cutting dies. It is the first to enter the era of digital cutting die-free processing, which significantly improves product accuracy and ensures product quality.
Save - Sichuang packaging material cutting machine adopts vibration knife cutting technology, which does not need to make knife molds, saving the cost and time of knife mold manufacturing, management, storage, etc. in the production and development process.
Packaging material cutting machine product advantages:
l Automatic tool setting system solves the problem of low precision of manual tool setting and saves tool setting time.
l The use of tools such as vibration knives/V knives/crease wheels eliminates the need to make knife molds, saving costs and time in the production and development process of knife mold manufacturing, management, storage, etc., completely bids farewell to the traditional manual knife mold cutting process, breaks through the bottleneck of the company's reliance on skilled workers, and takes the lead in entering the era of digital knife-free processing.
l Multifunctional cutting head design, highly integrated with multiple sets of processing tools, can interactively perform cutting, creasing, V-grooving, brushing, milling, half-cutting, etc. in one working unit to achieve one-stop operation.
l It can complete the cutting of samples with high difficulty and complex styles that cannot be achieved by die cutting, greatly expanding the design space of shoe designers, creating new styles that cannot be imitated by hand-cutting, making your samples more attractive, and making the design truly reach the realm of "not afraid of not being able to do it, but afraid of not being able to think of it".
l Through the visual positioning system (optional), color boxes and various printed graphics can be identified and accurately positioned and cut.
l It can realize timely modification of samples, save time for developing and making boards, quickly produce boards, quickly modify boards, and adapt to the fast-changing market demand. The same board surface adjustment can be faster than competitors, helping you quickly seize the market opportunity. Packaging cutting machine
Packaging material cutting machines can be used in the following industries (partially included, please consult for details):
Packaging material cutting machine technical parameters:
model | SC-1216 | SC-1625 | SC-1633 |
price | |||
Maximum cutting size | Width 1200mm, Length 1600mm | Width 1600mm, Length 2500mm | Width 1600mm, Length 3300mm |
Machine size (width*length*height) | 2000mm*2500mm*1250mm | 2400mm*3400mm*1250mm | 2400mm*4200mm*1250mm |
Machine weight | 650KG | 900KG | 1000KG |
Work surface | Fixed table, optional automatic feeding | ||
Standard tools | 1. Electric vibration knife, 2. Pressing wheel, 3. Pen, 4. Drag knife | ||
Optional tools | 1. Circular cutter , 2. Air vibration cutter, 3. Paintbrush, 4. Visual positioning, 5. Punching, 6. V-groove, 7. Milling cutter, 8. Foam cutter | ||
Technical parameters: | |||
Working characteristics | Adopt independent motion controller, computer operation and cutting operation are carried out simultaneously. The current position can be saved after power failure, and the unfinished cutting task can be continued after power failure. | ||
Human Machine Interface | 7-inch resistive touch screen | ||
Cutting speed | 1mm/s ～ 1800mm/s | ||
Cutting thickness | 0.1mm ～ 60mm (customizable) | ||
Cutting Materials | Grey board, cardboard, stickers, films, fiber composite materials, artificial leather, cloth, pearl cotton, fiberboard and other materials. | ||
Cutting accuracy | 1000mm error is ±0.1mm | ||
Repeat cutting accuracy | ≤0.2mm | ||
Minimum cutting circle diameter | ≥3mm (related to materials and tools) | ||
Control System | 4-axis independent motion controller + multi-threaded real-time embedded control system (maximum number of axes can reach 8) | ||
Drive system | Fuji/Mitsubishi/Panasonic and other brands of digital servo motors | ||
Transmission mode | Gear rack, linear guide, ball screw | ||
Drag chain cable | High flexible drag chain cable | ||
Electrical components | MEANWELL/AirTAC/DELIXI | ||
Machine material | 7075 alloy aluminum vacuum adsorption platform | ||
Cutting Panels | Highly breathable fiber panel⑵ | ||
High frequency vibration knife | No-load vibration frequency 15000 times/minute | ||
Adsorption fan | AC 380V±10% 50/60±1Hz Power: MAX_5.5KW-7.5KW | ||
Command system | HP-GL compatible formats | ||
Compatible software formats | AI, Autocad, Coraldraw, ArtiosCAD, CimPack, ImpactCAD, DraftSight CAD, etc. | ||
Transmission interface | RJ45 network port, capable of one-to-many and many-to-one communication, with a maximum transmission distance of 100 meters | ||
Function Configuration | Automatic tool depth | ||
Working voltage/frequency | AC 220V±10% 50/60±1Hz Power: MAX_1.5KW (Requires 10A socket, national standard 1.5 mm² wire) | ||
