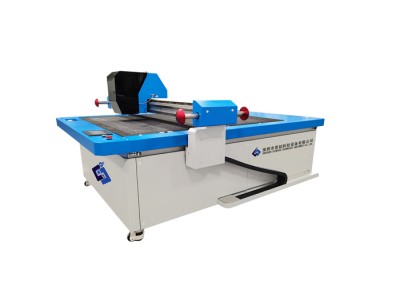

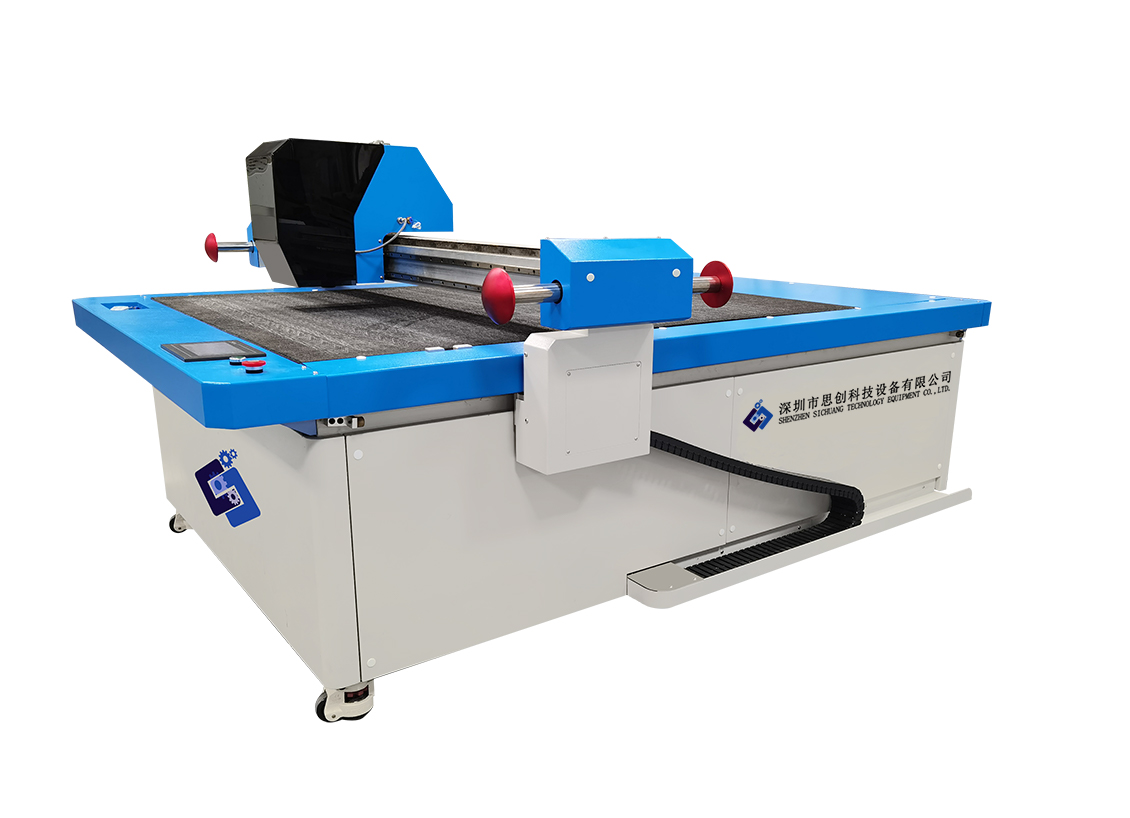

Product name: Gasket cutting machine
● Suitable for various gasket proofing and manufacturing companies to tailor cutting solutions.
● It can realize fast typesetting and cutting, saving time, labor and materials.
● Widely used, it can be used for cutting asbestos, rubber, PVC, PU, composite materials and other gasket materials. Gasket cutting machine
Fast - The cutting speed of the SiChuang intelligent gasket cutting machine is 4-6 times that of traditional manual cutting, which enables fast unloading, fast discharging and fast production, especially for customers with small order quantity, many styles and short delivery time. Accurate - The SiChuang intelligent gasket cutting machine is computer-controlled, the sample distance can be accurate to 0.1-1mm, and continuous cutting avoids the damage of laser cutting to leather materials, and also avoids the manual errors of manual cutting, and the discharging is more accurate to ensure product quality.
Save - SiChuang intelligent gasket cutting machine can increase the material utilization rate by 1%-5% on average, saving the direct cost of leather. Whether it is a genuine leather manufacturing company or a non-genuine leather manufacturing company, it can save considerable material costs throughout the year.
Gasket cutting machine product advantages:
l The vibration knife / pneumatic knife cutting technology is adopted, and there is no need to make knife molds, which saves the cost and time of knife mold manufacturing, management, storage, etc. in the production and development process. It completely bids farewell to the traditional manual knife mold cutting process, breaks through the bottleneck of the company's dependence on skilled workers, and takes the lead in entering the era of digital knife-free processing.
l The multifunctional cutting head design integrates multiple sets of processing tools, which can perform interactive cutting, punching and marking in one working unit to achieve one-stop operation.
l It can complete the cutting of samples with high difficulty and complex styles that cannot be achieved by die cutting, greatly expanding the design space of shoe designers, creating new styles that cannot be imitated by hand-cutting, making your samples more attractive, and making the design truly reach the realm of "not afraid of not being able to do it, but afraid of not being able to think of it".
l The powerful nesting and calculation system can automatically nest materials and accurately calculate materials, thereby calculating costs, accurately controlling material distribution, and truly realizing a digital zero inventory strategy.
l By simulating each operation process with a computer, programmed operation is realized, eliminating the interference of workers' emotions, skills, fatigue and other personal factors in traditional cutting, avoiding hidden waste, and thus improving material utilization rate.
l It can realize timely modification of samples, save time for developing and making boards, quickly produce boards, quickly modify boards, and adapt to the fast-changing market demand. The same board surface adjustment can be faster than competitors, helping you quickly seize the market opportunity. Gasket cutting machine
Gasket cutting machine technical parameters:
model | SC-1816 | CS-1625 | SC-1830 | SC-2230 |
Effective cutting size (mm) | Width 1800, Length 1600 | Width 1600, Length 2500 | Width 1800, Length 3000 | Width 2200, Length 3000 |
Feeding method | Optional | Optional | Optional | Optional |
Optional tools | 1. Circular cutting knife , 2. Electric vibration knife, 3. Air vibration knife, 4. Brush, 5. Visual positioning, 6. Punching | |||
Technical parameters: | ||||
Working characteristics | Adopt independent motion controller, computer operation and cutting operation are carried out simultaneously. The current position can be saved after power failure, and the unfinished cutting task can be continued after power failure. | |||
Human Machine Interface | 7-inch resistive touch screen | |||
Storage capacity | 4GB | |||
Cutting speed (1) | 1mm/s ～ 1800mm/s | |||
Cutting thickness (1) | 0.1mm ～ 20mm (customizable) | |||
Cutting Materials | Fiber composite materials, artificial leather, cloth, pearl cotton, fiberboard and other materials. | |||
Cutting accuracy | 1000mm error is ±0.3mm | |||
Repeat cutting accuracy | ≤0.2mm | |||
Minimum cutting circle diameter | ≥3mm (related to material) | |||
Control System | 4-axis independent motion controller + multi-threaded real-time embedded control system | |||
Drive system | Digital servo motor | |||
Transmission mode | Belt drive (optional rack drive), linear guide, ball screw | |||
Drag chain cable | High flexible drag chain cable | |||
Electrical components | MEANWELL/AirTAC/DELIXI | |||
Machine material | Alloy aluminum vacuum adsorption platform | |||
Cutting Panels | Highly breathable fiber panel⑵ | |||
Adsorption fan | AC 380V±10% 50/60±1Hz Power: MAX_5.5KW-9KW | |||
Command system | HP-GL compatible formats | |||
Compatible software formats | AI, Autocad, Coraldraw, ArtiosCAD, CimPack, ImpactCAD, DraftSight CAD, etc. | |||
Transmission interface | RJ45 network port, capable of one-to-many and many-to-one communication, with a maximum transmission distance of 100 meters | |||
Function Configuration | Oscillating knife , circular knife, brush, punching, cross red light positioning. | |||
Working voltage/frequency | AC 220V±10% 50/60±1Hz Power: MAX_1.5KW (Requires 10A socket, national standard 1.5 mm² wire) | |||

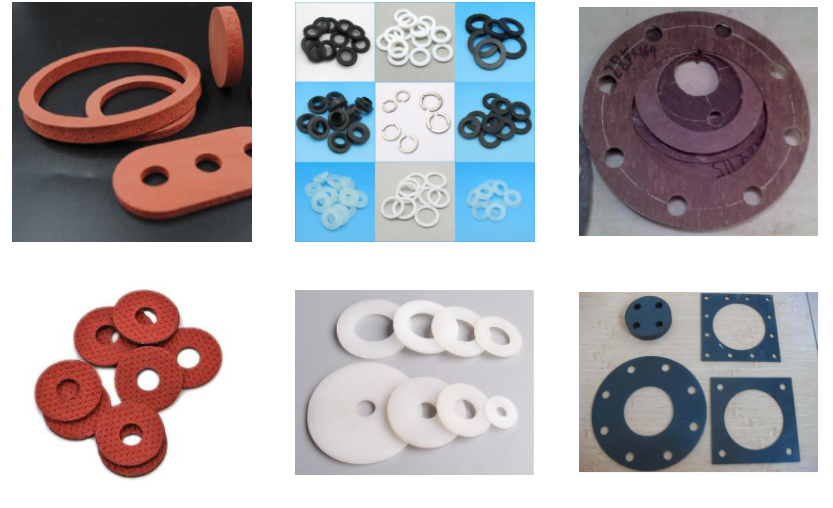

Some pictures of gasket cutting machine application industries:
