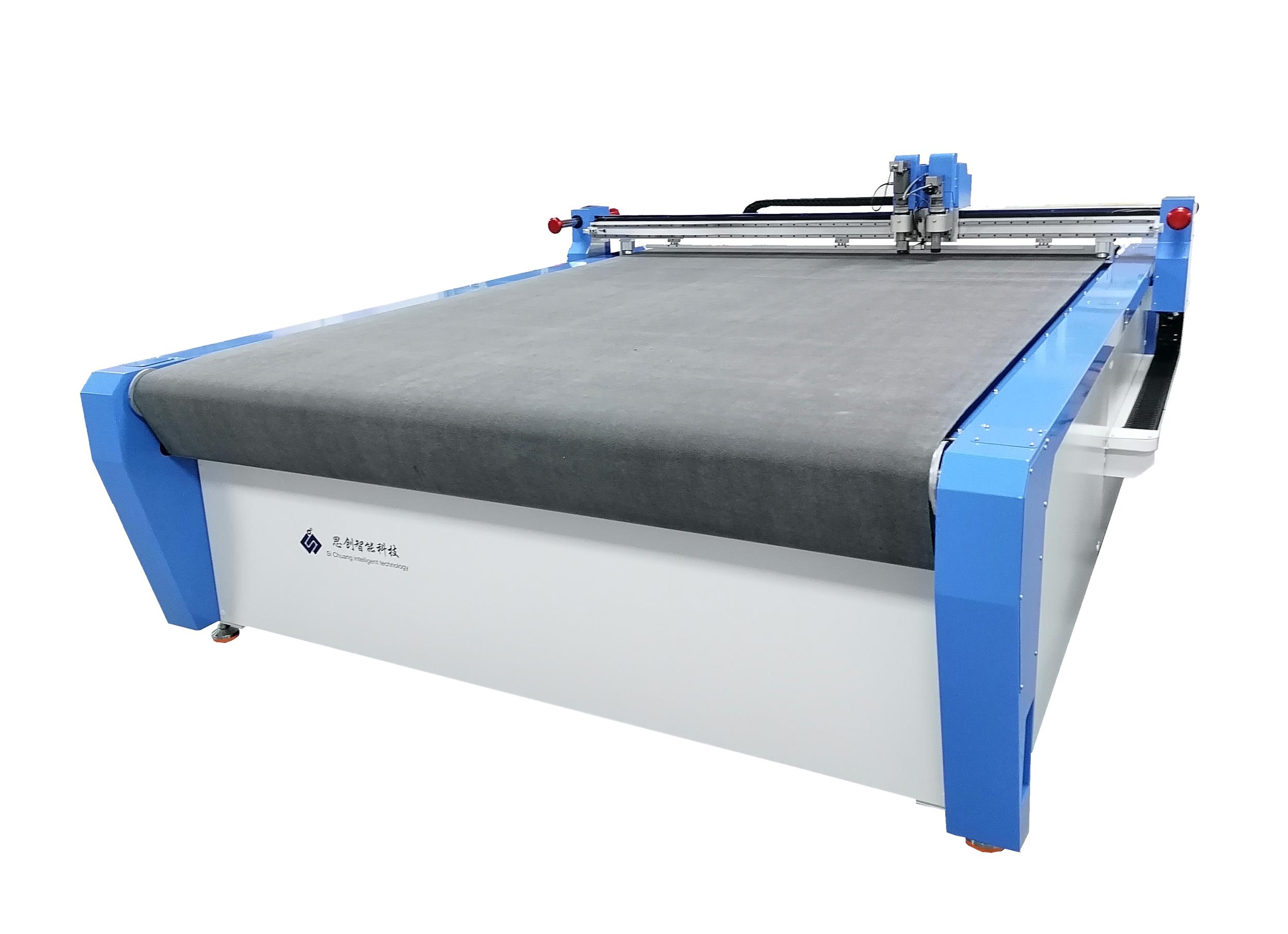

Product name: Sound-absorbing cotton cutting machine
Product Features:
● Suitable for various small orders and small batch production, tailor-made cutting solutions for enterprises.
● It can realize fast typesetting and cutting, saving time, labor and materials.
● Widely used, it can be used to cut sponges, sound-absorbing cotton, pearl cotton, and foam materials. Sound-absorbing cotton cutting machine
Fast - The cutting speed of the SiChuang sound-absorbing cotton cutting machine is 4-6 times that of traditional manual cutting, which enables fast unloading, fast discharging and fast production, especially for customers with small order quantities, many styles and short delivery time.
Accurate - SiChuang sound-absorbing cotton cutting machine is computer-controlled, the sample distance can be accurate to 0.1-1mm, and continuous cutting can avoid the damage of leather materials caused by laser cutting, and also avoid the manual errors of manual cutting, making the output more accurate and ensuring product quality.
Save - SiChuang sound-absorbing cotton cutting machine can increase the material utilization rate by 1%-5% on average, saving the direct cost of leather. Whether it is a leather manufacturing company or a non-leather manufacturing company, it can save considerable material costs throughout the year.
Product advantages:
l Automatic tool setting system solves the problem of low precision of manual tool setting and saves tool setting time.
l The use of tools such as vibration knives /circular knives/ pneumatic knives /drag knives eliminates the need to make knife molds, saving costs and time in the production and development process of knife mold manufacturing, management, storage, etc., completely bids farewell to traditional manual knife mold cutting technology, breaks through the bottleneck of the company's reliance on skilled workers, and takes the lead in entering the era of digital knife-free processing.
l The multifunctional cutting head design integrates multiple sets of processing tools, which can perform interactive cutting, punching and marking in one working unit to achieve one-stop operation.
l It can complete the cutting of samples with high difficulty and complex styles that cannot be achieved by die cutting, greatly expanding the design space of shoe designers, creating new styles that cannot be imitated by hand-cutting, making your samples more attractive, and making the design truly reach the realm of "not afraid of not being able to do it, but afraid of not being able to think of it".
l The powerful nesting and calculation system can automatically nest materials and accurately calculate materials, thereby calculating costs, accurately controlling material distribution, and truly realizing a digital zero inventory strategy.
l By simulating each operation process with a computer, programmed operation is realized, eliminating the interference of workers' emotions, skills, fatigue and other personal factors in traditional cutting, avoiding hidden waste, and thus improving material utilization rate.
l It can realize timely modification of samples, save time for developing and making boards, quickly produce boards, quickly modify boards, and adapt to the fast-changing market demand. The same board surface can be adjusted faster than competitors, helping you quickly seize the market opportunity.
SC series sound-absorbing cotton cutting machine technical parameters (customizable):
model | SC-1216 | SC-1816 | CS-1625 | SC-1830 |
Effective cutting size (mm) | Width 1200, Length 1600 | Width 1800, Length 1600 | Width 1600, Length 2500 | Width 1800, Length 3000 |
Feeding method | Optional | Optional | Optional | Optional |
Optional tools | 1. Circular cutting knife , 2. Electric vibration knife, 3. Air vibration knife, 4. Brush, 5. Visual positioning, 6. Punching | |||
Technical parameters: | ||||
Working characteristics | Adopt independent motion controller, computer operation and cutting operation are carried out simultaneously. The current position can be saved after power failure, and the unfinished cutting task can be continued after power failure. | |||
Human Machine Interface | 7-inch resistive touch screen | |||
Storage capacity | 4GB | |||
Cutting speed (1) | 1mm/s ～ 1800mm/s | |||
Cutting thickness (1) | 0.1mm ～ 20mm (customizable) | |||
Cutting Materials | Fiber composite materials, artificial leather, cloth, pearl cotton, fiberboard and other materials. | |||
Cutting accuracy | 1000mm error is ±0.3mm | |||
Repeat cutting accuracy | ≤0.2mm | |||
Minimum cutting circle diameter | ≥3mm (related to material) | |||
Control System | 4-axis independent motion controller + multi-threaded real-time embedded control system | |||
Drive system | Digital servo motor | |||
Transmission mode | Belt drive (optional rack drive), linear guide, ball screw | |||
Drag chain cable | High flexible drag chain cable | |||
Electrical components | MEANWELL/AirTAC/DELIXI | |||
Machine material | Alloy aluminum vacuum adsorption platform | |||
Cutting Panels | Highly breathable fiber panel⑵ | |||
Adsorption fan | AC 380V±10% 50/60±1Hz Power: MAX_5.5KW-9KW | |||
Command system | HP-GL compatible formats | |||
Compatible software formats | AI, Autocad, Coraldraw, ArtiosCAD, CimPack, ImpactCAD, DraftSight CAD, etc. | |||
Transmission interface | RJ45 network port, capable of one-to-many and many-to-one communication, with a maximum transmission distance of 100 meters | |||
Function Configuration | Oscillating knife , circular knife, brush, punching, cross red light positioning. | |||
Working voltage/frequency | AC 220V±10% 50/60±1Hz Power: MAX_1.5KW (Requires 10A socket, national standard 1.5 mm² wire) | |||
SC series sound-absorbing cotton cutting machine samples:
