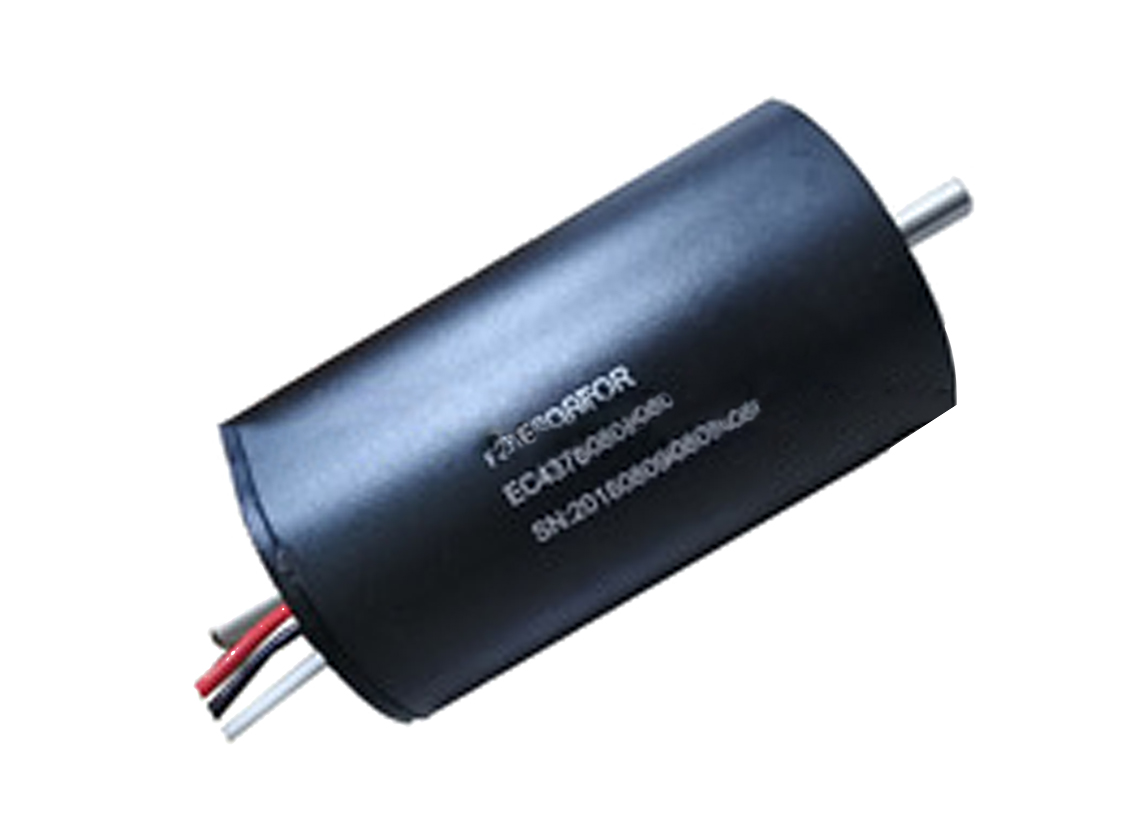

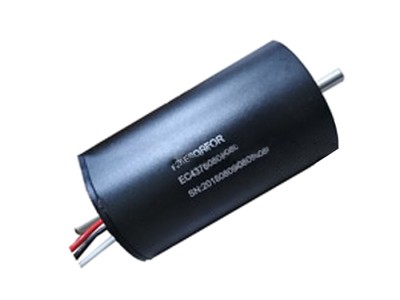

Part name: Vibrating knife high speed EC4370 DC brushless motor
Accessories introduction:
This motor is widely used in the vibrating cutter head on the flexible material cutting machine . It has high power, and its matching motor has high speed, large torque and stable operation.
Specifications:
Voltage: DC 24V/5V dual input
Power: About 70W
Speed: 7000R/M
size:
Shell length and diameter: 62*32mm
Length of housing plus front and rear axles: 90mm
Spindle length 19mm, diameter 5mm
Rear axle length 10mm, diameter 4mm
Installation hole diameter: 3mmx4 cross arrangement
Packing size (length, width and height): 146x77x77mm
Terminal blocks: 4
Applications:
Small machine tool spindle, high-speed cutting head, circular cutter head , vibrating cutter head , aircraft model power, etc.
