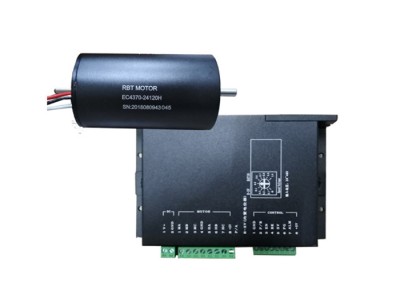

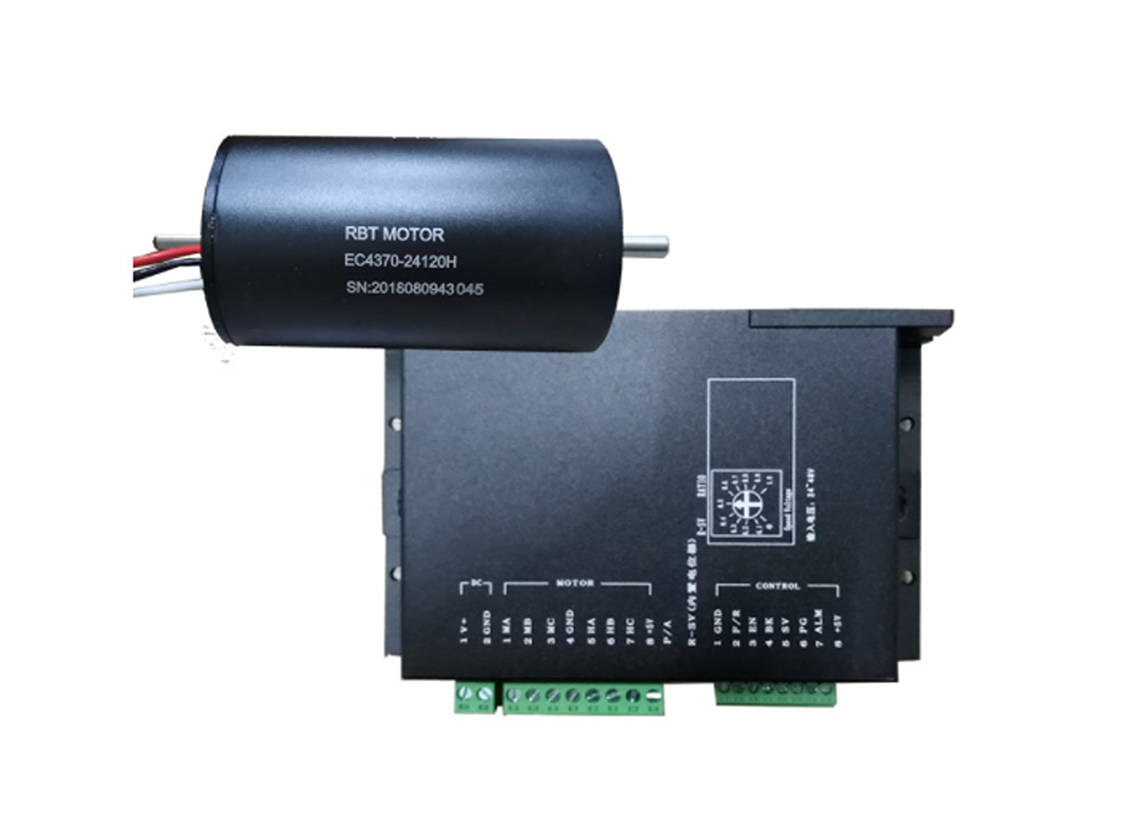

Part name: EC4370-24100H brushless DC motor + driver kit
Motor introduction:
This motor is widely used in the circular cutter head of the flexible material cutting machine . It has high power, and its matching motor has high speed, large torque and stable operation.
Specifications:
Voltage: DC 24V
Power: About 120W
Speed: 16000R/M
size:
Shell length and diameter: 70*40mm
Length of housing plus front and rear axles: 100mm
Spindle length 14mm, diameter 5mm
Rear axle length 16mm, diameter 4mm
Installation hole diameter: 3mmx4 cross arrangement
Packing size (length, width and height): 146x77x77mm
Terminal blocks: 3
Applications:
Small machine tool spindle, high-speed cutting head, circular cutter head, vibrating cutter head , aircraft model power, etc.
Driver Introduction:
This motor driver is widely used in the circular cutter head motor drive on the flexible material cutting machine. It has high power, and its matching motor has high speed, large torque and stable operation.
Specifications:
Voltage: Input DC 24-36V, output three-phase
Power: greater than 120W
Speed: 16000R/M
Dimensions (L/W/H): 151x108x48mm
Packing size (length, width and height): 160x117x55mm
Note: This driver should be used with its corresponding motor.
