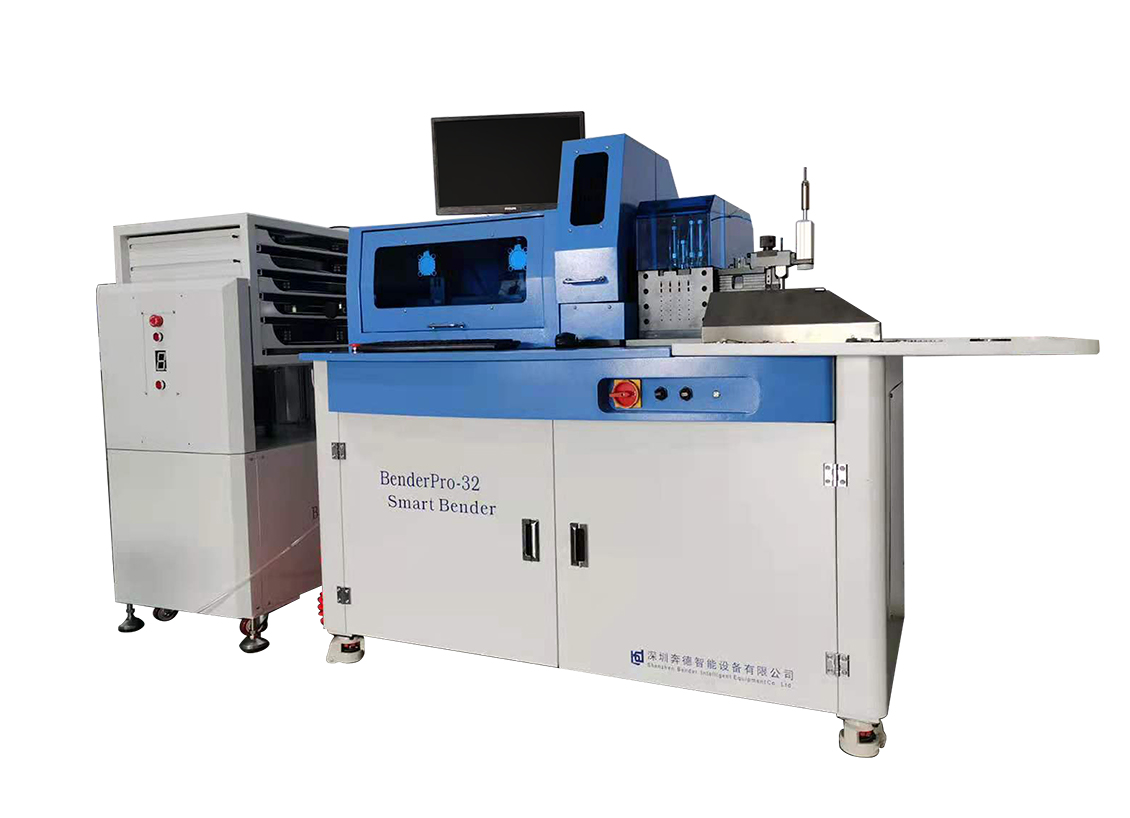

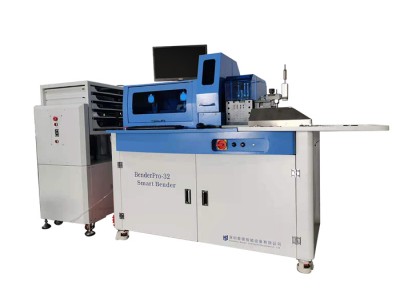

BenderPro-32 Intelligent Bender Machine

Product name: BenderPro-32 Intelligent Scimitar Machine

Product Description:

Benderpro-32 intelligent bending knife machine is widely used in the production of laser cutting molds such as electronic boards, color boxes, cartons, blister, figurine crafts, tags, flower knives, stickers, wine boxes, boutique gift boxes, pearl cotton, leather goods, etc. Automatic bending knife machine

Basic functions:

Double screw feeding, flat cutting, eagle beak, bridge position, adjustable combination die, 1 set of grinding angle, 1 set of dotting

Customization features:

Teeth punching (custom mold 1-2mm), hole punching, butterfly hole, dot punching mold customization 0.2-1mm

Hardware features:

1. Independently developed positive and negative double screw dynamic interchangeable knife clamping structure, circular feeding, improving the production efficiency and precision of the whole machine;

2. Modular punching can be adjusted to suit materials of different heights with the same blade;

3. 3 sets of grinding discs, which can grind right angles, sharp angles, head and tail angles, and grooves, and can automatically calibrate the depth of the grinding disc;

4. The mold is made of imported high-quality mold steel, with special heat treatment, high strength and durability;

5. The frame is welded with high-strength square steel as a whole, and the assembly surface is processed in one go using a gantry milling machine to ensure the accuracy and stability of the machine;

6. The punching power uses a large torque servo motor, which has strong punching force, fast speed, good stability, and can achieve seamless cutting;

7. Punching and bending dies are designed with positioning, which is convenient for disassembly and maintenance.

Technical parameters:
