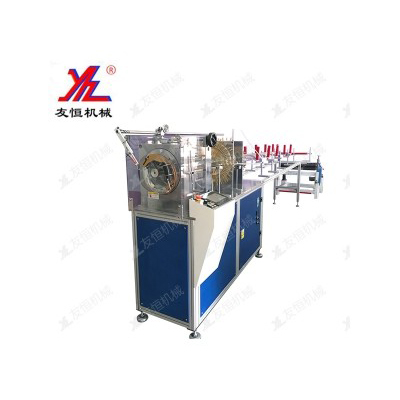

Full-automatic cylinder machine coiling Model: YH-200A
Equipment Description:
PVC Cylinder Machine, Automatic PVC Cylinder Brush Glue Machine, Automatic Cylinder Sticky Edge Machine, Automatic Cylinder Forming Machine , PVC Cylinder Automatic Cylinder Rolling Machine: adopts intelligent man-machine interface operating system, servo motor drive, electronic counter, molding fast and accurate. Full-automatic cylinder machine adopts roll material on the machine, automatic sheet pulling, without leveling and cutting, automatic continuous gluing, continuous production, automatic molding cylinder, size customized, long and short self-proposed, the whole process of automatic mechanical production, pulling the sheet of 800 meters per hour, (100MM cut once, for example), the effect is good, do not wear the cylinder, sticky edge beautifully not white.
Equipment features:
1. Suitable for PVC, PET cylinder automatic production.
2. Automatic continuous gluing, continuous production, cylinder height (length) computer control, to cut as long as possible.
3. Cylinder size can be quickly adjusted by the machine.
4. The finished cylinder size is accurate and consistent.
5. It can be produced directly from roll material without leveling and slitting.
6. Highly intelligent touch screen computer control, easy and quick operation.
7. Saving human resources and realizing automatic production in factory.
8.Full-automatic cylinder machine applicable scope: PVC,APET,PETG roll material sheet forming cylinder
9. Glue, ultrasonic welding dual-use function, can be added with perforation device, can be printed and detected.
Technical parameters:
Maximum raw material width: 640mm
Production speed: 3000-4000/hour (for example, cut once every 100mm)
Sheet thickness: 0.12-0.5 mm
Accuracy: ≤±0.1MM
Required air pressure: 0.6Mpa 350L/min
Machine weight: 800Kg
Total power: 380VAC (three-phase five-wire) 5KW
Machine size: 4200*900*1400mm(L*W*H)
Cylinder diameter: 27-200MM
Cylinder length: 10MM-3000MM
